Newton Duplex Valve Sprl V3-3P

Image for illustration only. It may show a product series rather than the exact product offered.

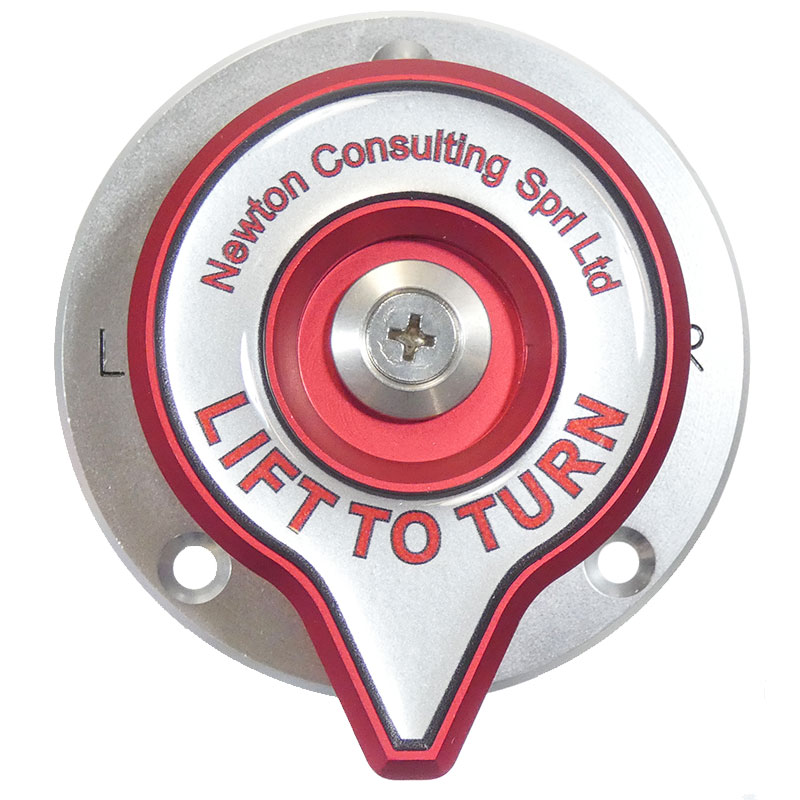

Newton Duplex Valve Sprl V3-3P

https://www.roctexo.com/web/image/product.template/25015/image_1920?unique=182fd28
Part numbers : RX1-05-06469 , SPRL V3-3-P , 05-06469
Unit of Measure: EA

233.21 EUR / EA 233.21310004486318 EUR 233.21 € excl. VAT

233.21 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Newton SPRL V3-3P is a three-port duplex fuel valve with LEFT–RIGHT–OFF selector positions. Manufacturer part number: SPRL V3-3-P.

Developed with a separate, simple return system, the valve has a 1/8 in NPT return connection for standard AN-4 or other pipe fittings. The main valve is supplied with three -6 fittings and is designed for use with Newton SPRL fittings; standard AN fittings are not suitable for the main valve connections.

  • Three-port duplex valve configuration
  • Selector positions: LEFT – RIGHT – OFF
  • Separate return connection: 1/8 in NPT
  • Supplied with 3 × -6 fittings
  • Approximate installation envelope: 61 mm diameter × 66 mm depth below the flange

The return arrangement is intended for trapped air or low-volume fuel return applications from carburettors. It is not suitable for most current fuel-injection systems, and some return cross-feed may occur due to the simple drum-valve design.
