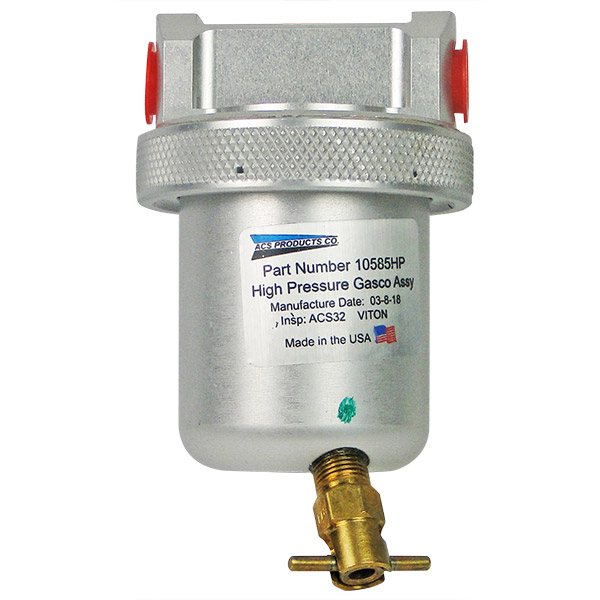

ACS High Pressure Gascolator

https://www.roctexo.com/web/image/product.template/123952/image_1920?unique=d6b631d
Part numbers : RX1-05-04248 , 10585HP , 05-04248
Unit of Measure: EA

139.87 EUR / EA 139.87 EUR 139.87 € excl. VAT

139.87 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 16 EA ready to ship on Thursday 2026-08-20
Order before 15:30 CET Tomorrow
Up to 27 EA ready to ship on Monday 2026-08-24
Order before 15:30 CET Tomorrow
28 EA available on request, fees apply
Special order from vendor stock.

The ACS High Pressure Gascolator is a compact fuel-system gascolator with a simplified threaded-collar bowl retention design. Compared with the ACS classic gascolator design, the bail wire and separate attaching hardware are eliminated.

  • Manufacturer part number: 10585HP
  • Threaded collar secures the bowl to the top section.
  • Cadmium-plated bowl with anodised top and collar for corrosion protection.
  • Two 1/4 in pipe ports for 3/8 in fuel line and one 1/8 in pipe port for a primer fitting.
  • Product weight: 0.204 kg.

Approval status: not EASA/FAA approved; stated for experimental-aircraft use. Verify suitability, installation arrangement and applicable airworthiness requirements with appropriately qualified personnel before installation.

Contact Us

Terms and Conditions

Share

Overview

New ACS high pressure gascolator. Lighter weight and simpler design than the ACS "classic" gascolator. Bailwire and attaching hardware have been eliminated. Threaded collar secures bowl to top. Tested to 40lbs. Bowl is cadmium plated and top and collar are anodized for corrosion protection. Top has 1/4" pipe ports for 3/8" fuel line and one 1/8" pipe port for primer fitting.
Made in USA
