Stmp Piper Rib U1213-01

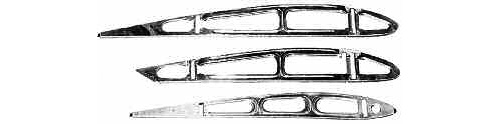

Image for illustration only. It may show a product series rather than the exact product offered.

Stmp Piper Rib U1213-01

https://www.roctexo.com/web/image/product.template/29105/image_1920?unique=2917c8c
Part numbers : RX1-05-02398 , U1213-01 , 05-02398
Unit of Measure: EA

209.42 EUR / EA 209.42 EUR 209.42 € excl. VAT

209.42 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

Stamped Piper wing rib, manufacturer part number U1213-01. This individual rib is identified in the supplied product information as corresponding to Piper reference 10653-002, described as a left-hand No. 4 three-quarter rib for the Piper PA-18-150 series.

The rib is formed from a single piece of 5052-H34 aluminium sheet, approximately 0.81 mm thick. The one-piece design eliminates the separate braces, cap strips and associated rivets used in multi-piece rib construction.

  • Manufacturer part number: U1213-01
  • Piper reference: 10653-002
  • Configuration: LH No. 4, three-quarter rib
  • Material: 5052-H34 aluminium
  • Nominal material thickness: 0.81 mm
  • Unit of supply: each

Confirm part-number applicability, configuration and installation requirements against the applicable aircraft maintenance data before purchase and installation.
