Saf-Air Fuel Drain Valve 1/8-27 NPT CAV-110

https://www.roctexo.com/web/image/product.template/34658/image_1920?unique=8b7704e
Part numbers : RX1-05-01865 , CAV-110 , 05-01865
Unit of Measure: EA

49.75 EUR / EA 49.75 EUR 49.75 € excl. VAT

49.75 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
2 EA ready to ship Today
Order before 15:30 CET Today
Up to 203 EA ready to ship on Thursday 2026-08-13
Order before 15:30 CET Today
229 EA available on request, fees apply
Special order from vendor stock.

The Saf-Air CAV-110 is a push-type fuel drain valve with a 1/8-27 NPT connection. Designed for straightforward fuel sampling and draining, it uses a stem-mounted fuel-resistant Viton® O-ring sealing against a flat valve-body seat.

  • Manufacturer part number: CAV-110
  • Thread: 1/8-27 NPT
  • Type: Push-type fuel drain valve
  • Material: 360 brass
  • Finish: Natural
  • Operating temperature: -51 °C to +127 °C
  • Maximum pressure: 4.1 bar (60 psi)
  • O-ring: M83248/1 size -006
  • Serviceability: Rebuildable design

Saf-Air lists the CAV-110 as FAA-PMA approved. Installation eligibility, applicable airworthiness requirements and maintenance data should be verified against the aircraft documentation before installation.

Manufacturer product information | Manufacturer approvals information

Contact Us

Terms and Conditions

Share

Overview

SAF-AIR push type fuel drain valves are close tolerance valves of simple design. These valves provide the most trouble free operation of any other line of valves in the industry. SAF-AIR valves are manufactured with an o-ring placed on the stem to seal against a flat seat on the body. This design eliminates an area where dirt can gather, thus putting an end to the main cause of fuel drain valve drip. FAA & PMA APPROVED.

Note: Aircraft applications are for general reference only. Verify correct valve for your aircraft before ordering.

MODEL CAV-110 1/8” NPT - For Cessna 310 tip tanks; Mooney Mark 20 and 20A; all Ercoupe models; Bellanca, Taylorcraft model B; Stinson 108, 108-1, 108-2, 108-3; Voyager model 10 and 10A; Navion; Waco VK series and UPF; and Sea Bee. Fits all standard gascolators.

Features

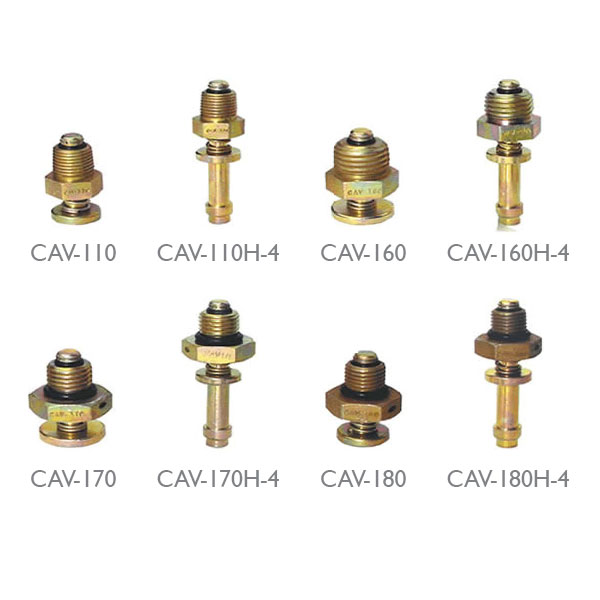

  • Eight models in two styles with or without 1/4" hose adapter
  • All Valves can be rebuilt
  • Standard fuel resistant o-rings
  • Simple operation - just push to sample fuel

Specifications

  • MATERIAL: 360 Brass
  • FINISH: Natural
  • TEMPERATURE: -60° to +260°F (-51° to +127°C)
  • O-RINGS: All valves M83248/1 Size -006 CAV-170 Size -012, CAV-180 Size -011
  • PRESSURE: 60 PSI max
  • MODEL CAV-110 1/8" NPT For Cessna 310 tip tanks; Mooney Mark 20 and 20A; all Ercoupe models; Bellanca, Taylorcraft model B; Stinson 108, 108-1, 108-2, 108-3; Voyager model 10 and 10A; Navion; Waco VK series and UPF; and Sea Bee. Fits all standard gascolators.
