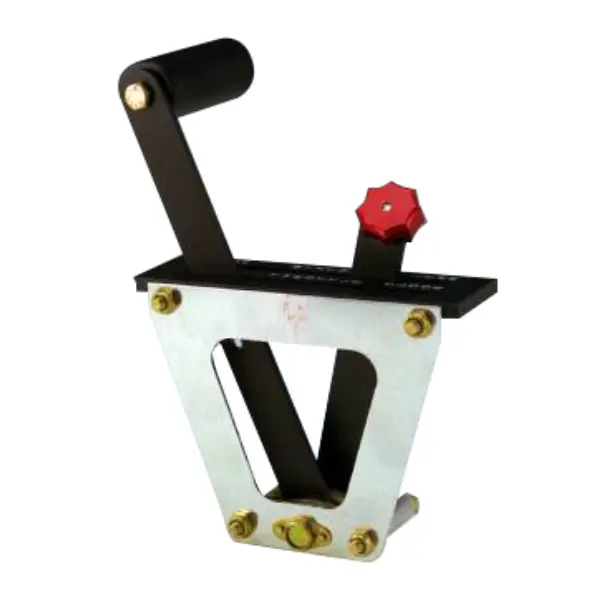

Flat 2-Lever CT82F Quadrant

https://www.roctexo.com/web/image/product.template/103682/image_1920?unique=182fd28
Part numbers : RX1-05-00702 , CT82F , 05-00702
Unit of Measure: EA

295.36 EUR / EA 295.35579853020255 EUR 295.36 € excl. VAT

295.36 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Monday 2026-10-19
Order before 17:00 CET Tomorrow
5 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The CT82F is a flat-top, two-lever throttle quadrant in a side-mount configuration. It is designed as a compact mechanical engine-control quadrant for aircraft installation work.

  • Manufacturer part number: CT82F
  • Two control levers
  • Side-mount, flat-top configuration
  • Aircraft-quality anodised aluminium construction for corrosion resistance
  • Adjustable brass friction plates
  • Black anodised CNC-machined and engraved top plate
  • Laser-cut side plates and AN-standard hardware
  • Approximate dimensions: 197 mm high × 121 mm wide × 38 mm deep

Source information states that installation requires an AN665-21R clevis and an AN393-11 clevis pin.

Please confirm installation dimensions, cable-end arrangement, required hardware, and applicable airworthiness requirements before purchase or installation.

Contact Us
Orders with purchased items below 100.00 € incur a small order fee of 10.00 €. Both amounts exclude VAT. Shipping, other fees and core deposits do not count towards the limit.

Terms and Conditions

Share

Overview

These quadrants are made from aircraft quality anodized aluminum for long life and corrosion resistance. Brass friction plates are adjustable to fit individual preferences. Black anodized top plates are machined and engraved on a CNC mill to exacting tolerances for an excellent finish. side plates are laser cut insuring a perfect fit and feel. All hardware used meets AN standards. Note: All throttle qaudrants require a AN665-21R clevis with an AN393-11 clevis pin.

The side mount style quadrants are intended for use in tandem airplanes such as the RV4, RV8, Stardusters, Baby Great Lakes, One Design, Acro Sport and Sonerai. The center mount style is intended for use in side-by-side aircraft such as RV's, Sonex, Thorp T18 and Pulsars.

MODEL SPECIFICATIONS:
  • 2 CONTROL LEVER
  • Side Mount Flat Top
  • Weight: 8 Oz.
  • 7-3/4" H x 4-3/4" W x 1-1/2" D
