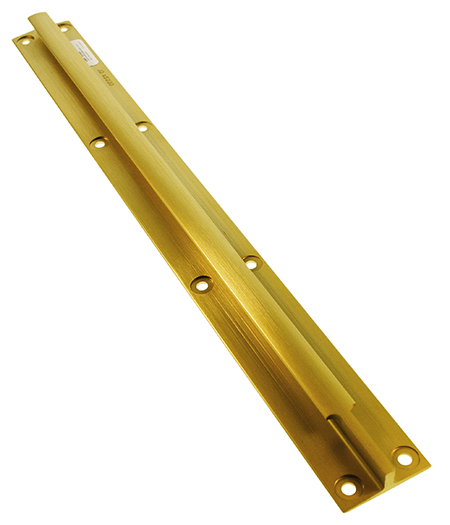

McFarlane Seat Rail MC0511000-64 FAA-PMA Approved

The McFarlane Aviation MC0511000-64 is a new FAA-PMA approved seat rail configured as an inboard right-hand (RH) rail. It is intended for replacement of the corresponding original part numbers 0511000-64 and 0511000-64S, subject to verification against applicable aircraft eligibility and approved maintenance data.

The rail base is supplied without pre-drilled rivet attachment holes, apart from factory pilot holes. This enables the installer to locate the final attachment holes to suit the existing aircraft floor rivet pattern. Special-sized or machined attachment holes are factory finished where applicable.

• Manufacturer: McFarlane Aviation
• Manufacturer part number: MC0511000-64
• Configuration: Inboard RH seat rail
• Approval: FAA-PMA
• Original part numbers: 0511000-64, 0511000-64S
• Approximate dimensions: 96.3 × 3.8 × 1.3 cm
• Approximate weight: 0.40 kg
• Unit of supply: Each

Before installation, inspect the aircraft floor structure and address any corrosion or damage in accordance with approved maintenance data. All required attachment fasteners must be installed as specified for the aircraft.

For current eligibility and manufacturer reference material, consult McFarlane Aviation product information for MC0511000-64.
