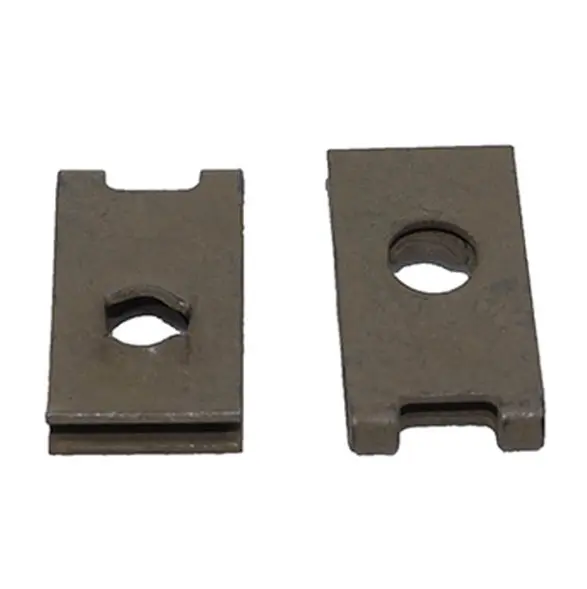

U Type Tinnerman A1787-8Z-1D
Part Number(s): 04-00365, 54778-25
Unit of Measure Name:
Units
Internal Reference:
RX1-04-00365
| Tinnerman No. | Screw Size | Part Number |
|---|---|---|
| A1787-8Z-1D | #8 | 04-00365 |
Overview
| Snaps over edge of panels or into center hole locations. Holds itself in place for blind assembly. "Floats" free for easy hole alignment. |
Specification Chart
Instructions
FLAT TYPE
- Fastener is positioned over screw clearance hole with screw-engaging prongs pointing up or outward. Screw is started into nut by hand from the underside.
- Screw can be power-driven into locked position (when base arch of fastener is flat) or a hand screw driver can be used. No wrench is required, finger pressure will prevent it from turning.
"U" TYPE
- Push into position with thumb until extrusion on lower leg snaps into screw hole. The fastener "floats" in screw-receiving position to correct for normal misalignment in panel mounting holes.
- Place second panel in position and drive screw. Access to opposite side is unnecessary. Flush mounting can be made by embossing either panel.
