Aurora Bearing Am-8 Right Handt

Aurora Bearing Am-8 Right Handt

https://www.roctexo.com/web/image/product.template/15519/image_1920?unique=b6be666
Part numbers : RX1-04-00242 , AM-8 , 04-00242
Unit of Measure: EA

37.16 EUR / EA 37.16 EUR 37.16 € excl. VAT

37.16 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
2 EA available on request, fees apply
Special order from vendor stock.

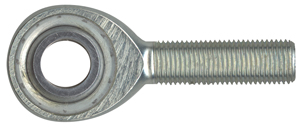

The Aurora Bearing AM-8 is a right-hand, male-threaded rod end bearing intended for mechanical linkage and motion-control installations where the applicable approved maintenance data specifies this part number.

  • Manufacturer part number: AM-8
  • Thread direction: right-hand
  • Thread configuration: male
  • Thread: 1/2-20 UNF-3A
  • Ball bore: 12.7 mm
  • Ball width: 15.9 mm
  • Head width: 12.7 mm
  • Base-to-centre distance: approximately 61.9 mm
  • Head diameter: approximately 33.3 mm
  • Ball diameter: approximately 23.8 mm
  • Thread length: 38.1 mm
  • Clevis-mounted misalignment angle: 12°
  • Ultimate radial static load capacity: 16,238 lbf (approximately 72.2 kN)
  • Approximate bearing weight: 0.136 kg

Supplied as one bearing (EA). Confirm part-number suitability, installation configuration, and approved technical data before use.
