Aurora Bearing Am-7

Aurora Bearing Am-7

https://www.roctexo.com/web/image/product.template/56287/image_1920?unique=0f59a23
Part numbers : RX1-04-00241 , AM-7 , 04-00241
Unit of Measure: EA

27.00 EUR / EA 27.0 EUR 27.00 € excl. VAT

27.00 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Thursday 2026-09-24
Order before 16:00 CET Tomorrow

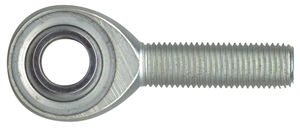

The Aurora Bearing AM-7 is a left-hand male rod-end bearing for mechanical linkage installations. It features a 7/16-20 UNF-3A male thread and an 11.1 mm ball bore.

  • Manufacturer part number: AM-7
  • Left-hand male thread
  • Thread size: 7/16-20 UNF-3A
  • Ball bore: 11.1 mm
  • Ball width: 14.3 mm
  • Head width: 12.0 mm
  • Base-to-centre dimension: 54.0 mm
  • Head diameter: 28.6 mm
  • Thread length: 34.9 mm
  • Clevis-mounted misalignment angle: 14°
  • Ultimate radial static load capacity: 45.8 kN

Please verify the required thread hand, dimensions and configuration against the applicable maintenance data before installation.
