RAMI AV-534 COMMAntenna TSO
Part Number(s): AV-534
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-AV-534
Overview

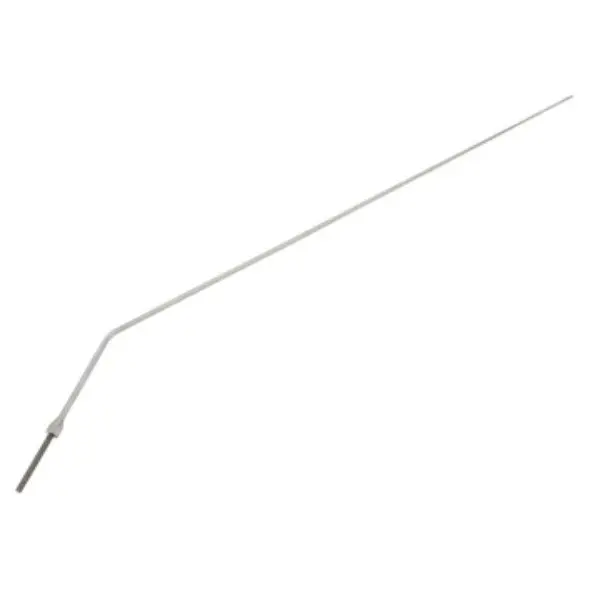

| The AV-534 is a heavy-duty stainless steel quarterwave VHF communications antenna. It is manufactured with a durable type stainless steel whip and large stress-relieved ferrule and comes complete with porcelain insulators and mounting hardware. The antenna is designed to operate at speeds of up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.56 lb @ 250 mph. AV-534 Stainless steel bent whip antenna w/ insulator & mounting hardware. 118-136 MHz. Wt. 3-1/2 oz. AV-534L Same antenna as described above but furnished with 96" lead of RG58 A/U cable with male BNC and ground strap with lugs. Wt. 7-1/2 oz. |
Specifications
- Application: Airborne Communications
- Frequency: 118 to 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 3.0 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: N/A
- Max Weight: 8 oz
- Max Height: 19-1/2"
- RF Power Capacity: 50 Watts
