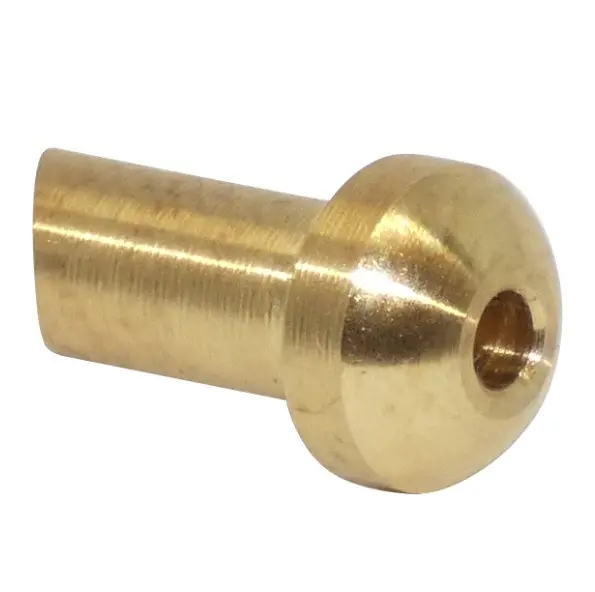

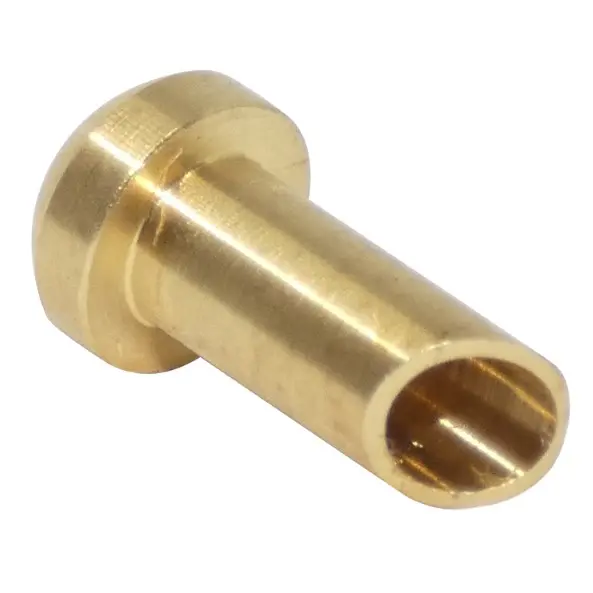

Union Cone AN800-2
Part Number(s): AN800-2
Unit of Measure Name:
Units
Internal Reference:
RX1-AN800-2
Overview
| AN Fittings. Union Cone. |
Specifications
- Distance From Flanged End To Tubing Clearance Hole:0.156 inches
- Flange Face Diameter:0.125 inches
- Flange Inside Diameter:0.076 inches
- Flange Outside Diameter:0.265 inches
- Flange Width:0.125 inches
- Hose/tube Outside Diameter For Which Designed:0.125 inches
- Material:Copper alloy
- Overall Length:0.500 inches
- Seat Radius:0.141 inches
- Sleeve Outside Diameter:0.165 inches
