Shock Cord Ring 9044
Part Number(s): 9044
Unit of Measure Name:
Units
Internal Reference:
RX1-9044
Overview

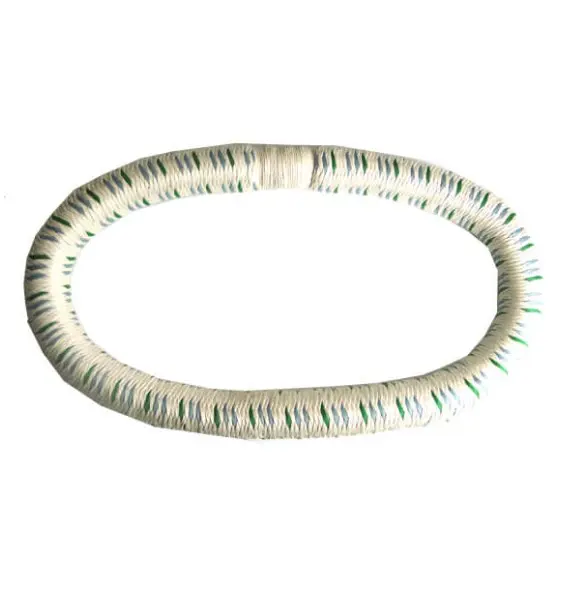

| An endless elastic ring composed of multiple strands of natural rubber, wound into a circular skein. Braided cover is high grade yarn. Manufactured to meet specification MIL-C-5651B, Type II. Shock cord is used in landing gear to reduce shock transmitted to fuselage while landing and taxiing and on other shock mounting applications. Color coded to insure fresh stock. The MIL Fresh Shock Ring number is 9044. The ring size is 9/16" x 4-1/2". Test is 400 LBS. 4 units required. Note: Size listed is cord diameter x ID |
Application Chart
| Plane | Type | Part # | Size | Test Lbs | No. Req'd |
|---|---|---|---|---|---|
| Aero Commander | 500A; 680 | 9044 | 9/16" x 4-1/2" | 400 | 8 |
| Aero Commander | 500A; 500B; 560F | 9044 | 9/16" x 4-1/2" | 400 | 4 |
| Aero Commander | 680F | 9044 | 9/16" x 4-1/2" | 400 | 2 |
