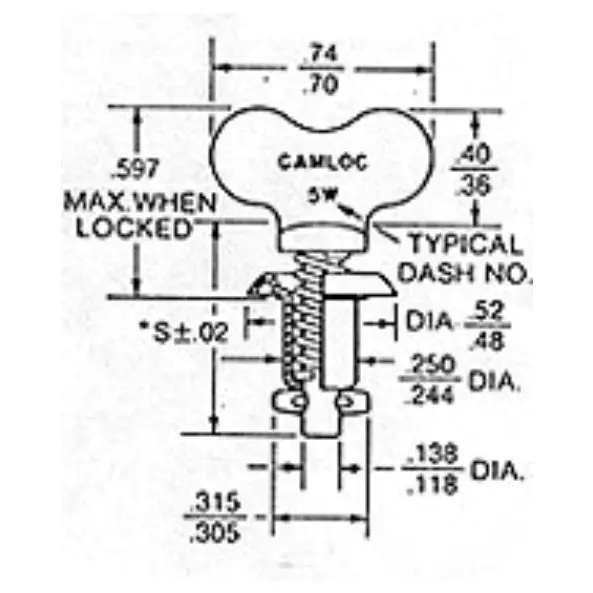

2600-6W Camloc Cadmium Wing Stud
Part Number(s): 2600-6W
Unit of Measure Name:
Units
Internal Reference:
RX1-2600-6W
| Type | Description | Part No. |
|---|---|---|
| Cad Plated | Camloc Wing Stud | 2600-6W |
Overview
| 2600/2700 STUD LENGTH SELECTION Total material thickness “G” consists of the thickness of all materials to be fastened. This must include the thickness of the material “P” to which the stud assembly is attached, the material “F” to which the receptacle is attached plus gaskets (if used) and allowance for paint or other protective finishes. If the total thickness is near the upper limit of the stud grip range, the next longer stud should be used. This will still maintain positive locking of the fastener under vibration. P (panel thickness)..................... .062 F (frame thickness................... + .062 GRIP (total thickness).............. = .124  |

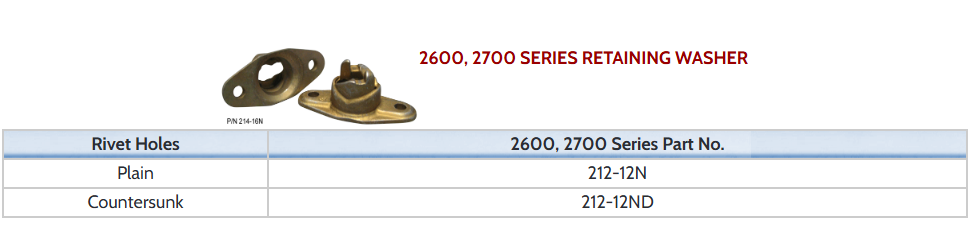

| STUD SELECTION TABLE Using 212-12 Receptacle |
| Total Grip Thickness | Use 2600 | Use 2700 |
| .021-.059 | 2600-1 | 2700-1 |
| .060-.089 | 2600-2 | 2700-2 |
| .090-.119 | 2600-3 | 2700-3 |
| .120-.149 | 2600-4 | 2700-4 |
| .150-.179 | 2600-5 | 2700-5 |
| .180-.209 | 2600-6 | 2700-6 |
| .210-.239 | 2600-7 | 2700-7 |
| .240-.269 | 2600-8 | 2700-8 |
| .270-.299 | 2600-9 | 2700-9 |
| .300-.329 | 2600-10 | 2700-10 |
| .330-359 | 2600-11 | 2700-11 |
| .360-389 | 2600-12 | 2700-12 |
| .390-.419 | 2600-13 | 2700-13 |
| .420-.449 | 2600-14 | 2700-14 |
| *4002-G grommet requires .090" minimum grip. |

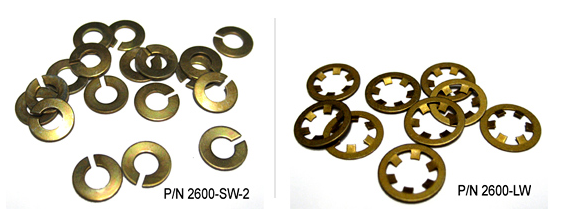

2600, 2700 SERIES RETAINING WASHER
Retaining washers are required for studs of -5 length or greater. Use split washer 2600- SW2 where it is desirable to have the stud fall away for minimum internal projection. Use internal tooth washer 2600-LW where it is desirable to retain the stud assembly rigidly.
| PN 2600-SW-2 | PN 2600-LW |
