Big Screw Tie Down System

Part numbers : RX1-13-21308 , 13-21308

Unit of Measure: EA

227.14 EUR / EA 227.14 EUR 227.14 € excl. VAT

227.14 EUR / EA excl. VAT

This combination does not exist.

Up to 5 EA ready to ship on Monday 2026-07-20

Order before 14:30 CET Today

2 EA available on request, fees apply

Special order from vendor stock.

Add to cart

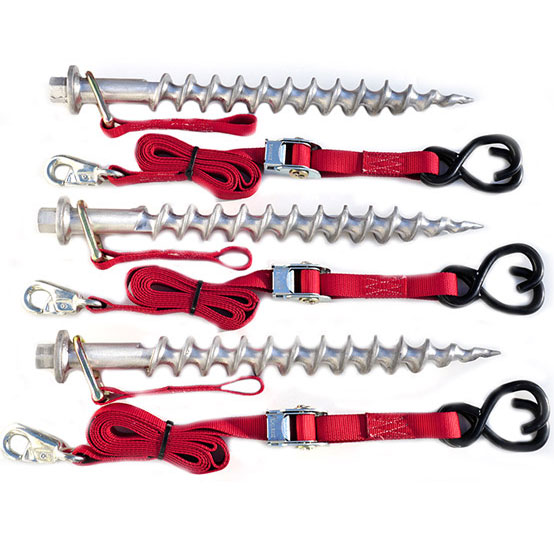

The Big Screw EZ Tie-Down System is a portable ground tie-down set designed to provide a secure connection between an aircraft tie-down point and the ground. The system combines cast aluminium ground screws with detachable, weather-resistant polyester straps for use where suitable ground anchoring is required.

Each ground screw is approximately 457 mm long and features a wide screw profile intended to penetrate compacted soil. The supplied straps are approximately 2.7 m long and incorporate a single-lever locking tensioner, vinyl-coated dual S-hooks and a cast-steel attachment clip.

Complete system with three cast aluminium ground screws
Three detachable polyester tie-down strap assemblies
Ground screws with steel attachment rings and webbing loops
Compact padded storage bag
Ground screws can be installed or removed using a suitable 25 mm ratchet, socket or portable impact wrench; tools are not included

Roctexo part number: RX1-13-21308.

An installation guide is listed for this product; consult the applicable instructions before use.

Documents

Installation Guide (PDF)

Terms and Conditions

Overview

Big-Screw EZ Tie-Down is an innovative tie down system combining a lightweight 18” cast aluminum ground screw, and a custom aviation designed attachment strap. The 18-inch long cast aluminum screw provides stronger ground holding in all soil types. The screw penetrates deeply into compacted soils resulting in superior holding strength. This exclusive design provides two to three times the holding strength of spike type angled-in tie-downs. Large 1¾” Wide screw provides 80 Square inches of Ground Contact Area, 40 times more than a spike. The screw can be positioned either directly below or set out from aircraft attachments. Quick easy installation and removal using a 1” ratchet, 1” socket, or a portable impact wrench (not included).

The aviation designed EZ Tie-Down Straps ensure a quick and secure connection between the ground and aircraft. The 9-foot tie-down straps feature industrial strength weather-proof Polyester webbing, single lever locking strap tensioner, heavy-duty vinyl coated aircraft attachment double S-hooks, and cast steel Chrome Plated Tie-Down Clip. The detachable straps can be used on airport ramps without the ground screw offering additional versatility.

Features

Ground Screw Features

Two to Three Times the Holding Strength of other Products
Heat Treated 356 Aluminum Alloy Screw
Light-Weight only 23 Ounces each
18-Inch Length Penetrates Deep into Compacted Soil
80 Square Inches of Ground Holding Surface Area Per Screw
Can be positioned directly below or set out from aircraft attachments
Quick Easy Installation and Removal with 1” ratchet, hex socket or portable impact wrench
Cast Steel Screw Attachment D-Ring with Webbing Loop

EZ Tie-Down Strap Features

9-Foot Industrial Strength Weather-Proof Polyester Straps
Single Lever Locking Strap Tensioner
Heavy-Duty Vinyl Coated Dual S-Hooks for aircraft attachments
Cast-Steel Chrome Plated Tie-Down Attachment Clip
Detachable Strap can be used on airport ramps

Additional Features

Compact Padded Storage Bag holds 3 Screws, 3 Strap Sets, and Wrench
Lightweight, Entire System Weighs only 10 Pounds
American Manufacture, Pilot Designed

In The Box

3 Aluminum Ground Screws with Steel Ring and Loop Strap
3 Custom Designed Aircraft Tie-Down Attachment Straps
Compact Padded Storage Bag
