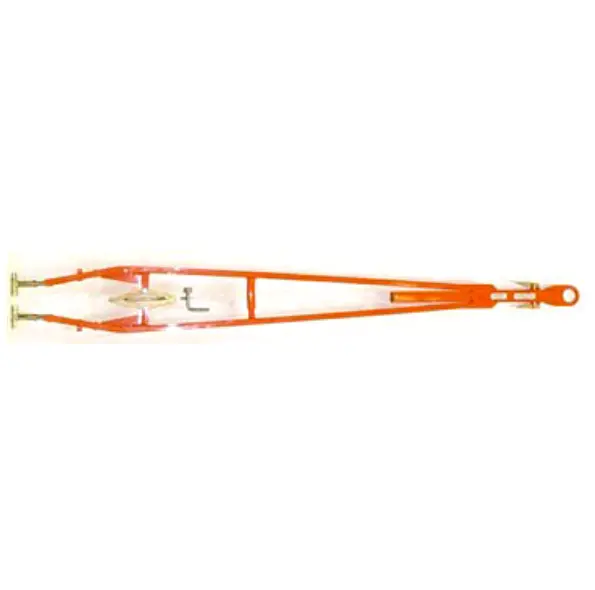

Brackett Towbar Tr-34R With Ring Hitch
Part Number(s): 13-10085, TR-34R
Unit of Measure Name:
Units
Internal Reference:
RX1-13-10085
Overview
| The TR-34 has the same universal features as the Th-5 & Th-53. The TR-34 has a telescoping tongue for easy hook-up. The length is 84” to 104”; the weight is 35 lbs. It will handle aircraft up to an aircraft gross weight of 14,000 lbs. |
Reference Chart
Description | Part No. |
Ring Hitch(TR-34R) | 13-10085 |
Ball Hitch(TR-34B) | 13-10086 |
Clevis Hitch (TR-34C) | 13-10087 |
TWA-10 Scott Tail Wheel Adapter (2 pcs. req) | 13-10089 |
Specifications
- Maximum aircraft gross weight: 14,000 lbs (6,350 kg)
- Maximum opening 12 1/2" (31.75 cm)
- Length: 92" (233 cm) closed, 104" (264 cm) extended
- Weight: 35 lbs. (16kg) (Shock Ring add 5 lbs.)
- Shipping box: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)
- Color orange powder coating
