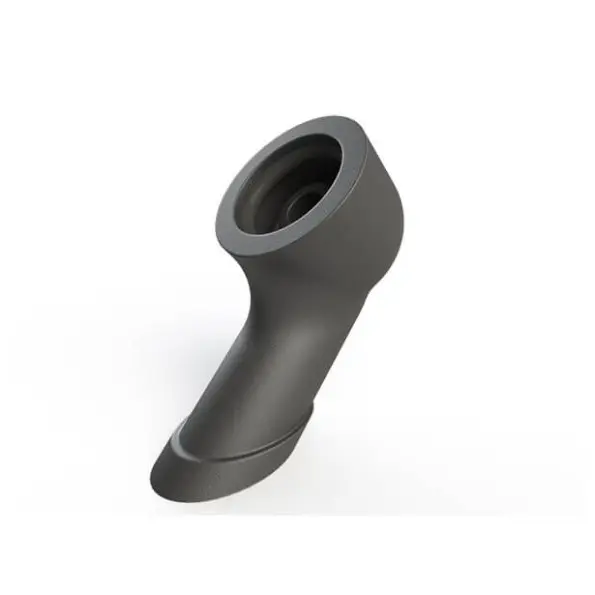

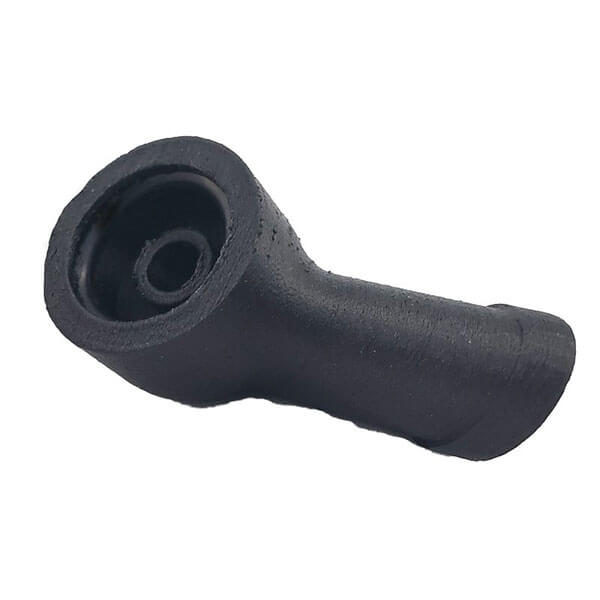

Bogert Oil Quick Drain Probe 09M-PrB90
Part Number(s): 09M-PRB90, 12-03237
Unit of Measure Name:
Units
Internal Reference:
RX1-12-03237
Overview
| Bogert Aviation 90 degree Oil Quick Drain Probe The first big improvement is that the probe is leak proof. The AVI design could leak where it mates to the valve plunger making a mess. The new design incorporates an O-ring seal around the valve body preventing leaks. The O-ring also locks the probe to the valve body. The second improvement is the compactness of the probe. It is actually shorter than the BJ 107B making it easier to install. |
Features
- Nylon and Aluminum Construction
- High Strength and rust proof
- Replacable O-Ring Seal
- 1/2" ID Hose Connection
Specifications

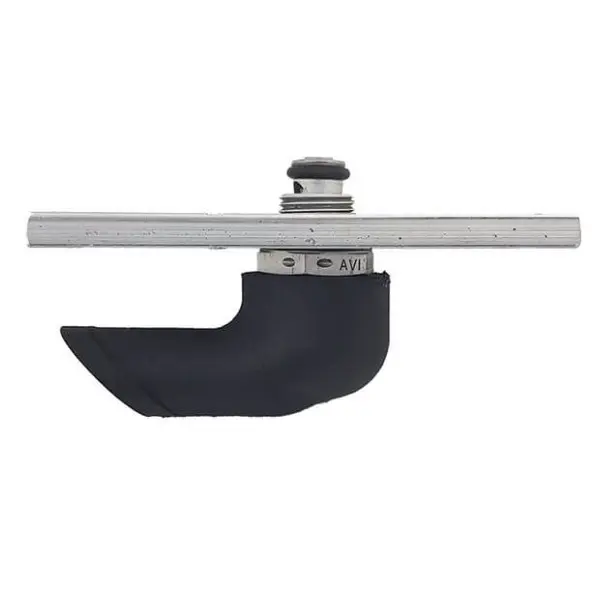

- Valve this attaches to has 5/8-18 threads and fits the drain holes of most Teledyne Continental engines
- 09M-PRB90 Replaces:
- Piper P/N: 481-359
- Beechcraft P/N: 107-B
- Auto Valve Inc. AVI-BJ-107B
- Note:**Suitable for PA28R-201, PA28R-201T and others having close clearance issues between the AVI valve and engine mount tubes.
Benefits
- Leak Free Design
- Faster Oil Flow
- Eliminate Clean Up
