ATS Dlx Hand/Bench Rivet Squeezer
Part Number(s): 12-02406, 5022-DX
Unit of Measure Name:
Units
Internal Reference:
RX1-12-02406
Overview

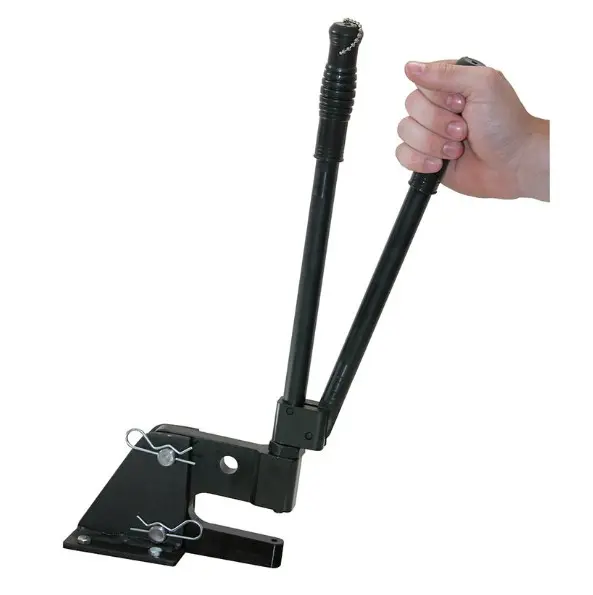

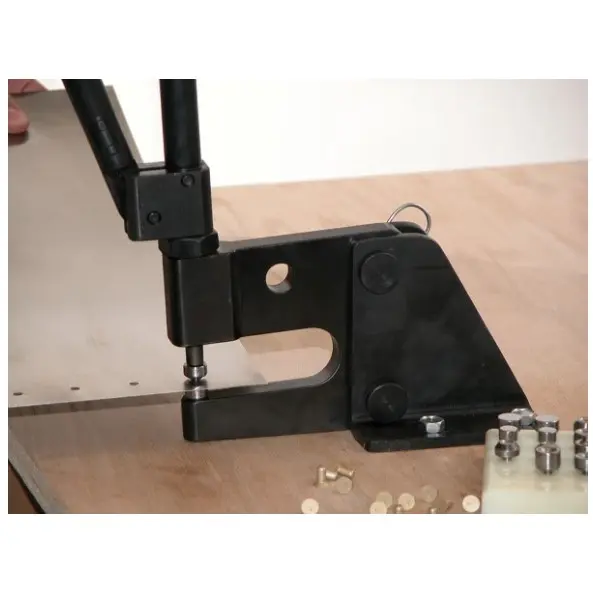

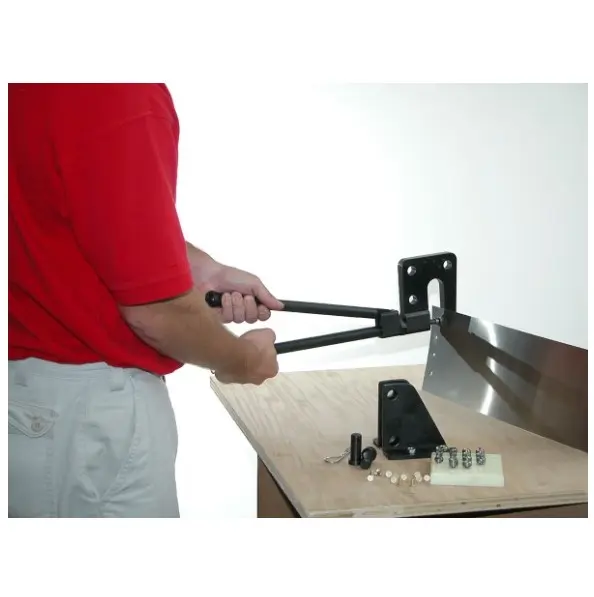

| Hand riveters are good for their portability, but the biggest complaint is that they are exhausting when you have serious riveting to do. The answer to this was a bench squeezer, but at hundreds of dollars, they are beyond most of our budgets -- until now! The new ATS Hand/Bench Rivet Squeezer gives you the best of both worlds at a price you can afford. It's a hand squeezer that converts to a free-standing bench squeezer in under 10 seconds! Just pin it into its cradle and you have a solid bench riveter; and when you need to use it as a hand riveter, simply unpin it. The ATS Hand/Bench Rivet Squeezer has the same design features as our popular 5022 squeezer, including a 360 degree swivel head, and an adjustable ram. It uses all of the same yokes and accessories as the 5022, and will squeeze up to 3/16" aluminum, or 5/32" steel rivets. |
Features
- 1-1/2 & 3" reach with 1-1/4" opening
- Yoke swivels a full 360 degrees and locks into any position for greater versatility
- 5/8" adjustable ram eliminates the need for shims
- 21" Overall length

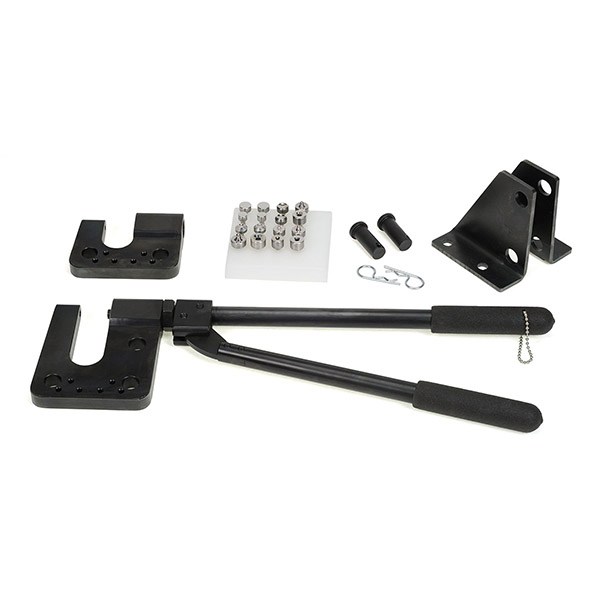

In The Box
- 5022-3 - 3" Hand Squeezer
- RS1009A - 1-1/2" Squeezer Head
- RS-BK - Bench Conversion Kit

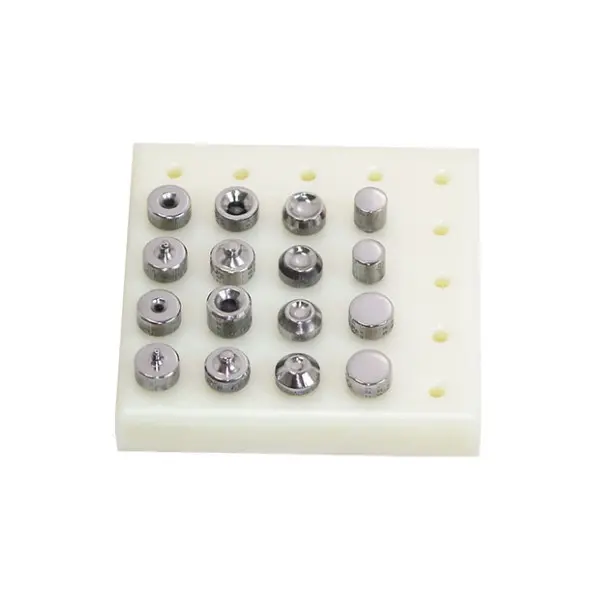

- 4703-2 - 3/32" Squeezer Set
- 4704-2 - 1/8" Squeezer Set
- 4705-2 - 5/32" Squeezer Set
- 4706-2 - 3/16" Squeezer Set
- 4710-2 - Flush Squeezer (1/2")
- 3710-2 - Flush Squeezer (3/8")
- 4263DP-2 - 3/32" Dimple Die
- 4264DP-2 - 1/8" Dimple Die
- 4265DP-2 - 5/32" Dimple Die
- 4266DP-2 - 3/16" Dimple Die
- 6785 - Squeezer Set Holder
