ATS-Pro Aircraft Tube Bead Kit

Part Number(s): 12-01049, AP145

This combination does not exist.

Unit of Measure Name: Units
Internal Reference: RX1-12-01049

Overview

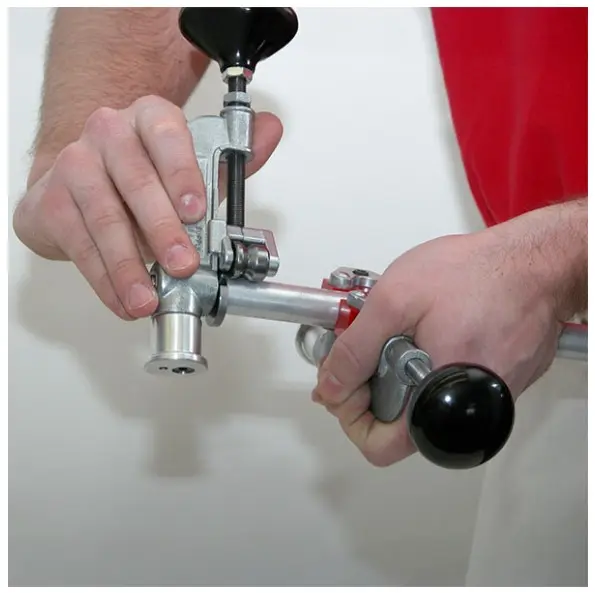

The Parker Beading Tool has been the number one choice of aircraft mechanics for making clamping beads in metal tubes. To this day, no other tool even comes close to matching its quality. So by special arrangement, the manufacturer tooled up to recreate this classic tool in every detail. In the process they have added a few enhancements of their own, such as ground, hardened, and polished surfaces for mar-free beads in aluminum, copper, brass, and mild steel tubes ranging from 1/4" to 1" diameter.

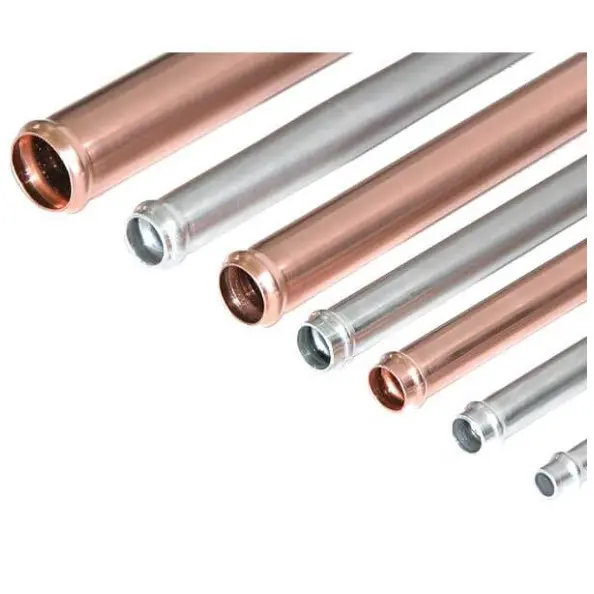

Beads aluminum, copper, brass and mild steel tubes.
Max wall thickness of tube is 30 thousands.
Diameters: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1"

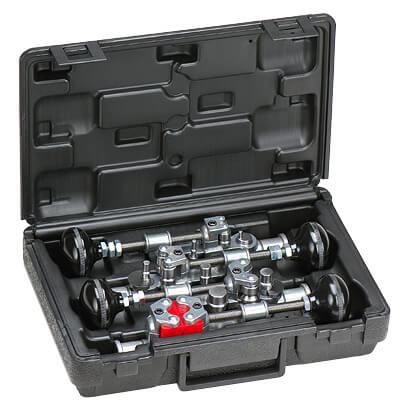

Includes plastic storage case
ALL SIZES GO IN 1/4" ON THE TUBE BEFORE IT BEADS
Meets MILSPEC MS33660D and SAE AS5131 standards.

TUBE SIZE	NOMINAL DIAMETER	MS3360D & SAE Type A Bead Size	SAE Type B Bead Size	Beading Die	Roller Size
04	.250"	.031"	.023" - .033"	#4	Small
06	.375"	.035"	.025" - .035"	#6	Medium
08	.500"	.038"	.028" - .038"	#8	Medium
10	.625"	.038"	.028" - .038"	#10	Medium
12	.750"	.038"	.030" - .040"	#12	Large
16	1.000"	.062"	.047" - .059"	#16	Large

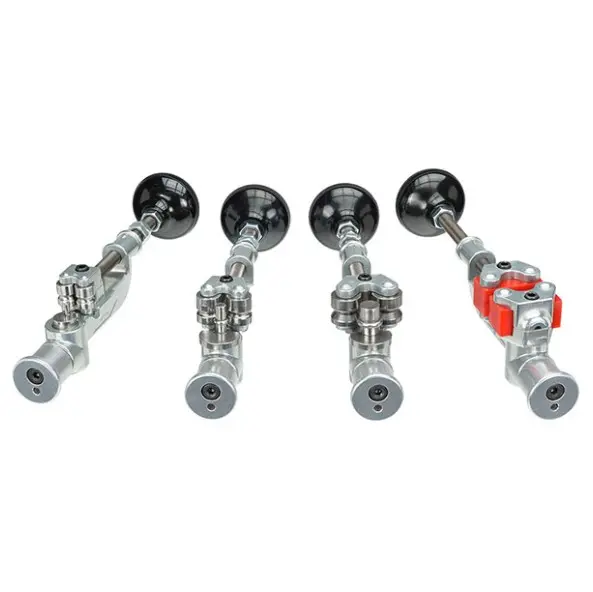

OEM Part Number	Description	Quantity
12-342-7-2	Outside Rollers and Frame Assembly (Small)	1
12-342-16	#4 Beading Die (1/4")	1
12-342-7-3	Outside Rollers and Frame Assembly (Medium)	1
12-342-20-6	#6 Beading Die (3/8")	1
12-342-20-8	#8 Beading Die (1/2")	1
12-342-20-10	#10 Beading Die (5/8")	1
12-342-7-4	Outside Rollers and Frame Assembly (Large)	1
12-342-20-12	#12 Beading Die (3/4")	1
12-342-20-16	#16 Beading Die (1")	1
12-342-24	Tube Holder and Rubber Block Assembly	1
12-342-17	Bushing	1
4-444-2	Tool Box	1
