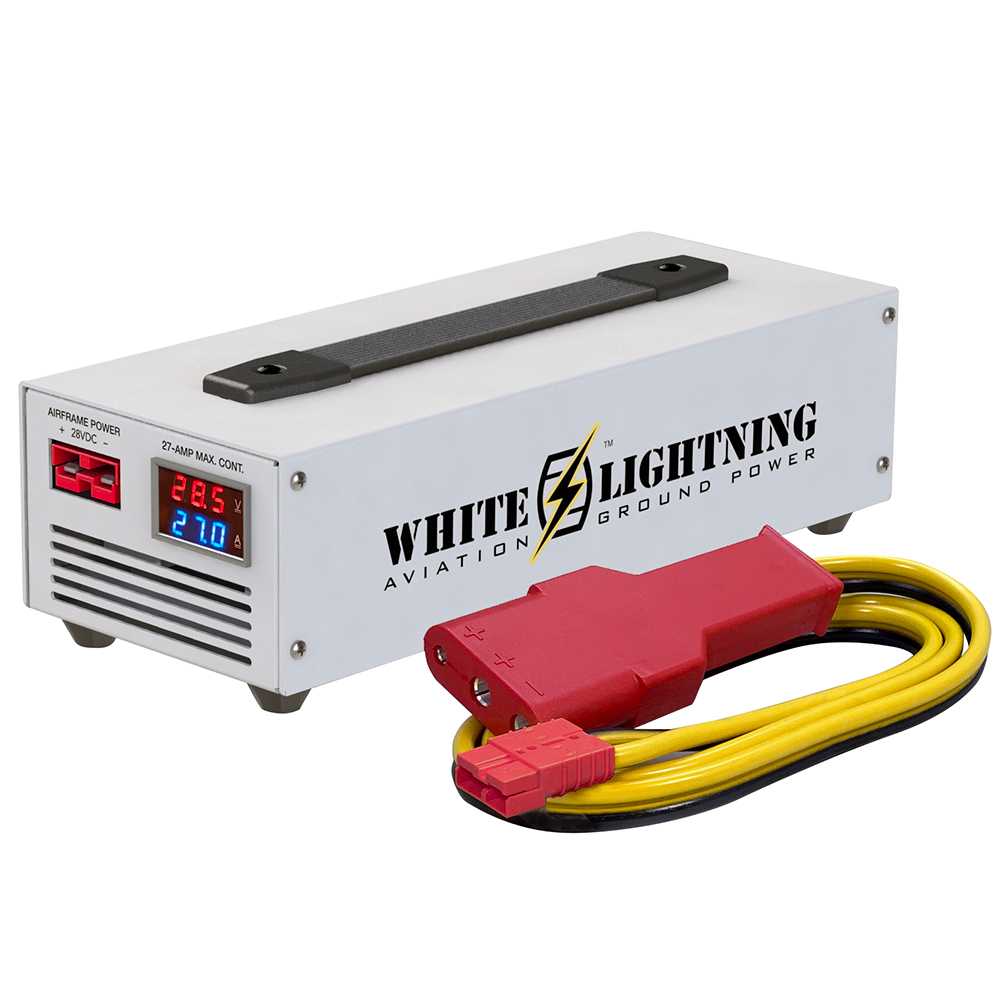

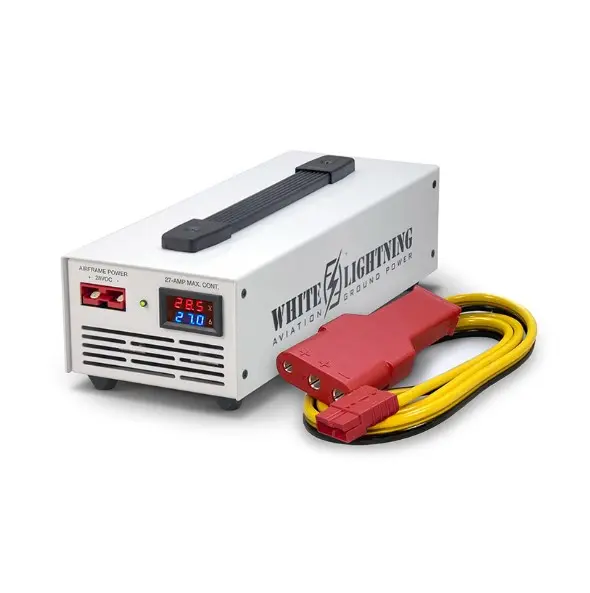

White Lightning M2827 28V Mini GPU For Certified Aircraft
Part Number(s): 11-18942, M2827
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-18942
Overview
| Clean, stable, airframe power for 24/28-volt aircraft. Output fixed at 28.5VDC, up to 27A maximum continuous power. Ideal for cockpit database and EFIS updates, flight planning, powered preflight, procedures training, and general maintenance. Detachable, replaceable 6’ output cable with AN2551 3-pin oval plug. Fully protected operation with automatic recovery. Suitable for most piston powered aircraft. |
Features
- Compact, lightweight, rugged design with collapsing carry handle

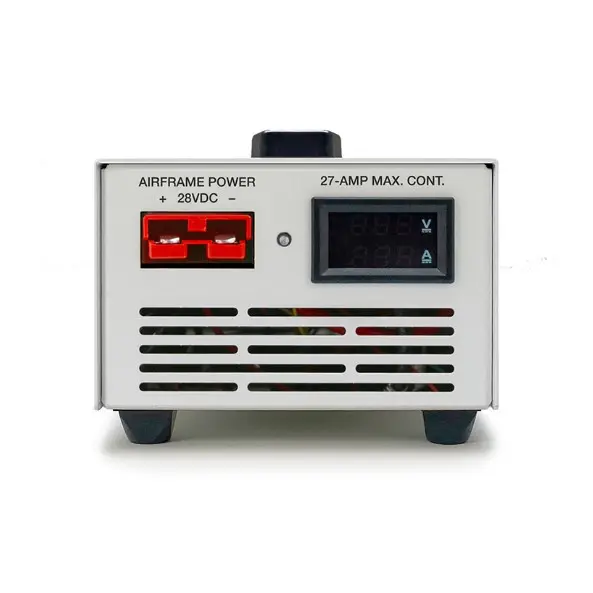

- Color-coded, polarized output connectors prevent voltage mismatch
- High-efficiency switching-mode power technology

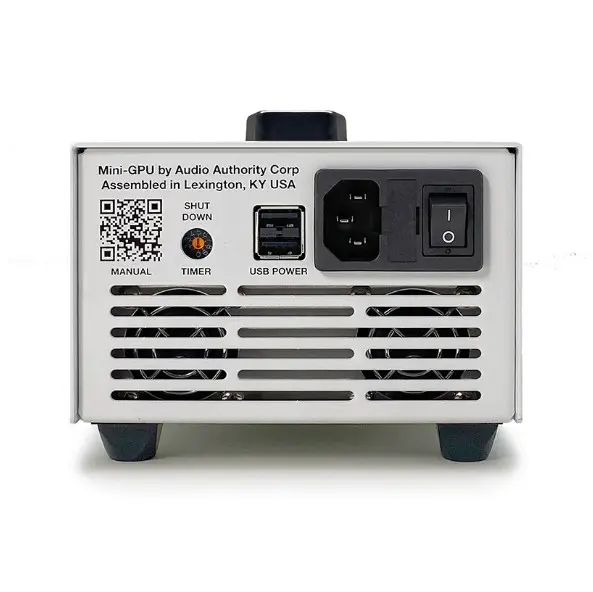

- Digital voltmeter/ammeter and operational status LED
- Forced air cooling for long term reliability
- Programmable timer with safety auto-shutoff
- USB 5V accessory convenience outlet
Specifications
- Universal Input: 90-240 VAC, 50-60 Hz, 9A@115VAC / 4A@230VAC
- Output: 28.5 VDC up to 27A maximum continuous
- Duty Cycle: Continuous, airframe power only, not for engine start
- Protection: Short circuit, polarity, over temp, over current, auto-reset
- Output Cable: Detachable 8-AWG 6 ft with AN2551 3-pin oval plug
- Unit Dimensions: 4.25” H x 5.32” W x 13.3” L
- Unit Weight: 9 lbs
