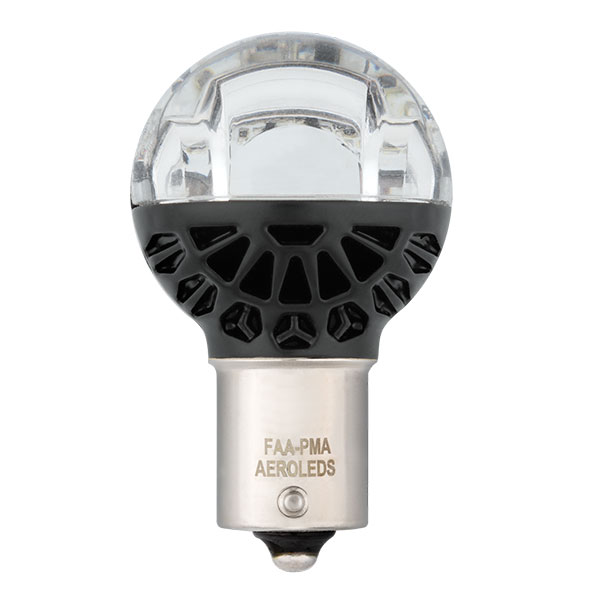

AeroLEDs Polaris LED Position Light Bulb 24V
Part Number(s): 11-17572, 11-7512-24
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-17572
Overview
| AeroLEDs is proud to introduce Polaris, an FAA-PMA approved all-LED replacement for the legacy incandescent navigational lamps. Note: 12v replaces the A7512-12, W1290-14, T7512-12, CMA7512-12, ML7512-12, UA-7512-12, M25309-7512. 24v replaces the W1290-28, T7512-24, CMA7512-24, A7512-24, ML7512-24, 972.72.54.508, MIL-L-6363/2, 6240-01-390-4921, 6240-01-143-8650, MS25309-7512, AN3122-1524, 1524, 040-0046, 753-478. |
Features
- 7 Watts
- 12V System Part # 11-17571
- 28V System part # 11-17572
- Exceeds TSO C-30C Type I & II
- FAA-PMA approved
- Bay 15S
Specifications
- Voltage: 9-18VDC (Part # 11-17571) / 18-32VDC (Part # 11-17572)
- Current: 0.46A @ 14VDC (Part # 11-17571)/ 0.37A @ 28VDC (Part # 11-17572)
- Power: 7 Watts / 10 Watts
- Pulse/WigWag: N/A
- Synchronization: N/A
- Lumens: 500 lm
- Nav Light: Exceeds TSO C-30C Type I & II
- MTBF: >30,000 Hours
- Length: 2.0"
- Width: 1.3"
- Depth: 1.1"
- Weight: 1.1 oz
- Heat Sink Material: Aluminum/Black Powder Coat
- Lens Material: Clear LSR
- Mounting BAY15S Socket
- Temperature Range: -55C to +70C
Benefits
- 100 X increased life expectancy
- 75% decrease in power consumption
- Increased reliability
- Direct drop-in replacement
- Installed behind red and green lenses (reducing SKU management)
