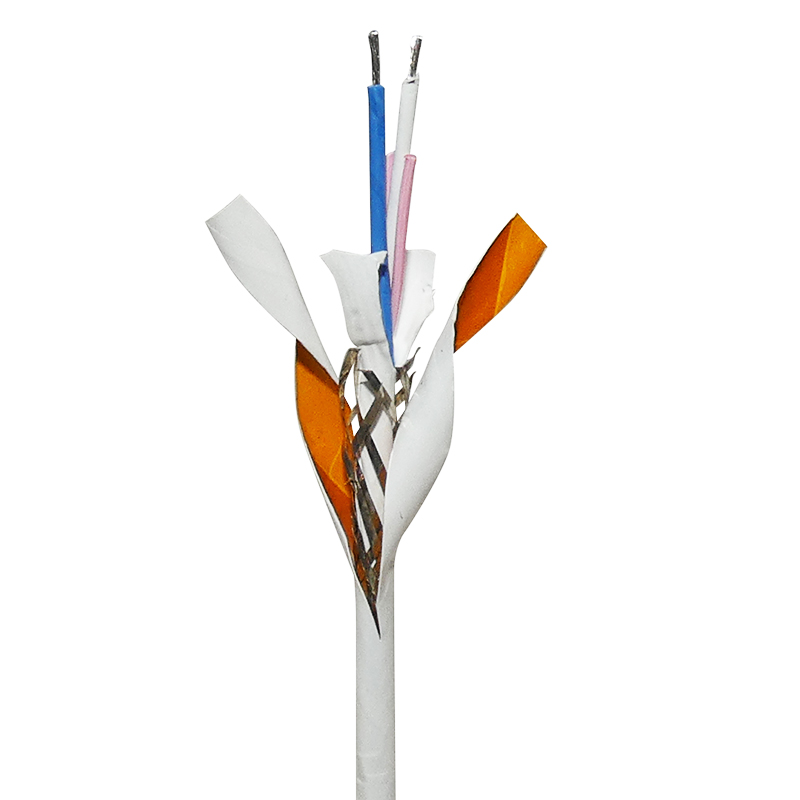

CaN24TsT120 Canbus Wire 120 Ohm

https://www.roctexo.com/web/image/product.template/126666/image_1920?unique=d157039

Part Number(s): 11-17264, CAN24TST120

6.02 € 6.02 EUR 6.02 € Tax Excluded

66.42 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: ft
Internal Reference: RX1-11-17264

Overview

GARMIN recommends the use of P/N CAN24TST120(CIT) cable to interface the CAN Bus on G3X, G5, GMU11, GAD29B, GFC500, GMC507, GSA28, etc.

Note: Please refer to GARMIN’s STC Installation Manual for specific details.

Specifications

  • Details: Carlisle CAN24TST120
  • AWG: 24
  • Impedance: 120 (Ohms)
  • Velocity of Propagation: 79%
  • Cable Diameter (in): 0.142
  • Cable Weight (lbs): 14
  • Min. Bend Radius (in): 1.42
  • Operating Temperature: -55 to 150°C
  • Type: Maxflite - CAN Bus
  • Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity
