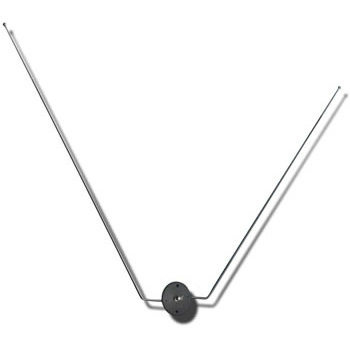

Comant CI-157P VOR LOC GS Antenna BNC

Frequency 108-118 MHz (VOR/LOC) 329-335 MHz (Glide Slope)

"V" dipole VOR/ Glide Slope antenna with fixed elements designed specifically for compatibility with the Piper Aircraft mounting. Integral ferrite balun provides for higher radiation efficiency replacing cumbersome coaxial baluns previously utilized. Radiating elements are not removable.

Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.

Not approved for helicopter installations.

Applications

Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

MODEL CI 157P V-DIPOLE

Electrical

Frequency

108-118 MHz (VOR / LOC)

329-335 MHz (Glide Slope)

VSWR

3.0:1 108-118 MHz (VOR / LOC)

3.0:1 329-335 MHz (Glide Slope)

Polarization

Horizontal

Radiation Pattern

Dipole

Impedance

50 Ohms Nominal

Power

Receive Only

Mechanical

Weight

0.5 lb Maximum

Height

18.00 in. Maximum

Material

Derlin Housing / Stainless Whips

Finish

Black Housing / Stainless Whips

Connector

BNC

Environmental

Temperature

330 KIAS Maximum @ Sea Level

Altitude

4.2 Oz. Maximum

Air Speed

DO-160D

Federal Specifications

RTCA Environmental

DO-160C

FAA TSO

C34c, C38c, C40c

FAA MOPS

DO-192, DO-195, DO-196
