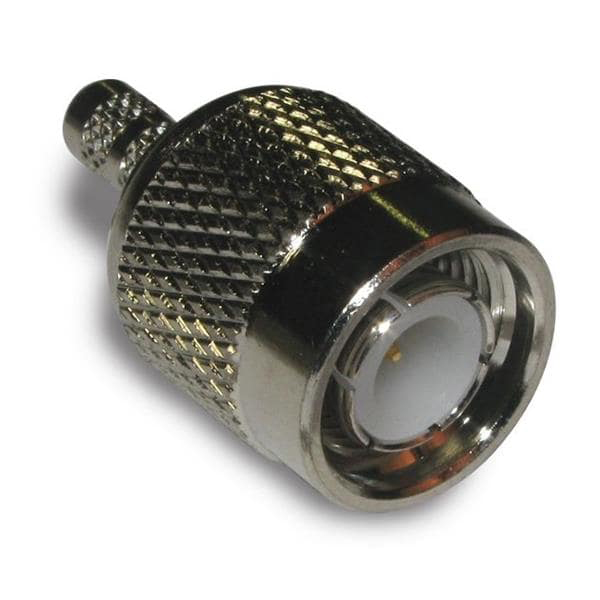

Amphenol 122372 TNC Male Rg 400
Part Number(s): 11-15369, 122372
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-15369
Overview
| RF Connectors / Coaxial Connectors TNC STRAIGHT PLUG STANDARD CABLE. Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory. |
Specifications
- Product Category: RF Connectors / Coaxial Connectors
- Manufacturer: Amphenol
- RoHS: RoHS Compliant By Exemption Details
- Product: Connectors
- RF Series: TNC
- Gender: Plug
- Impedance: 50 Ohms
- Maximum Frequency: 11 GHz
- Termination Style: Cable - Crimp
- Orientation: Straight
- Mounting Type: -
- Cable Type: RG-55, RG-142, RG-223, RG-400
- Packaging: Bulk
- Body Finish: Nickel
- Body Material: Brass
- Body Style: Straight
- Brand: Amphenol RF
- Contact Material: Brass
- Contact Plating: Gold
- Contact Termination: Crimp
- Coupling Mechanism: Threaded
- Isolation Type: Not Isolated
- Mating Cycles: 500
- Series: TNC
- Factory Pack Quantity: 1
- Voltage Rating: 500 V
- Unit Weight: 0.493835 oz
