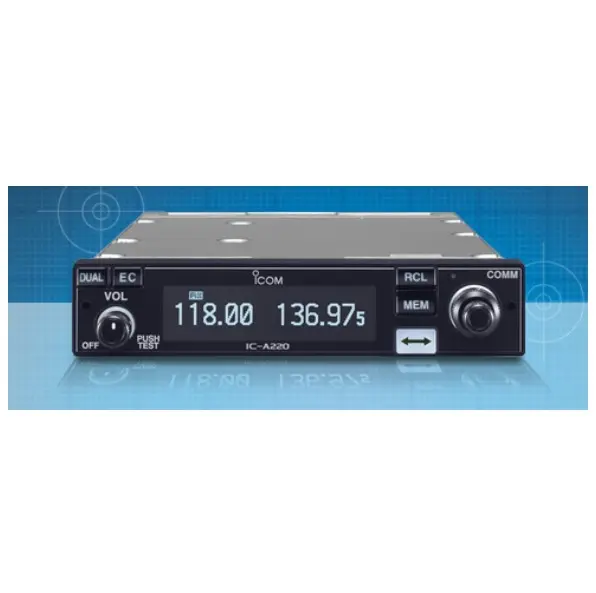

Icom Ic A220 COMM Panel Mount Radio Non-TSO
Part Number(s): 11-13688, A220
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-13688
Overview

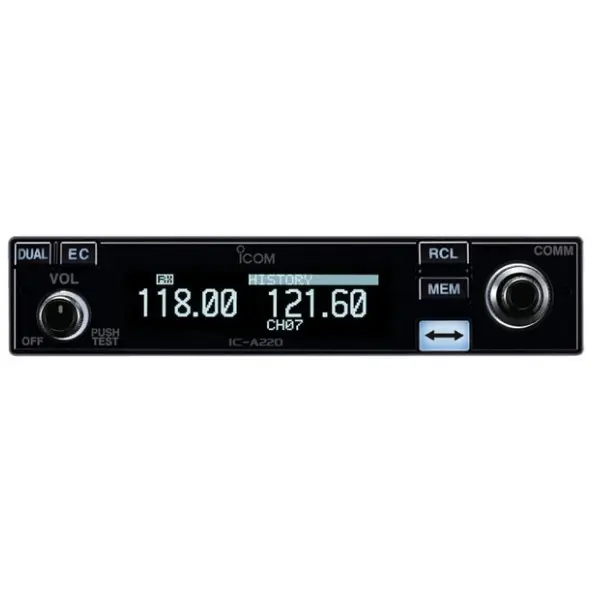

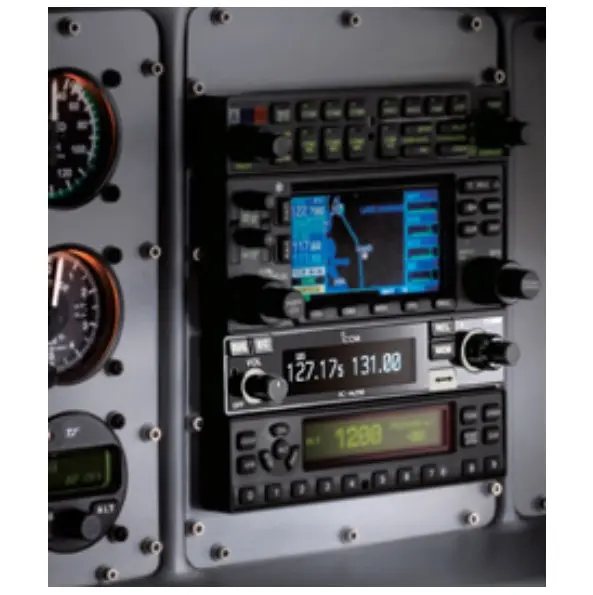

| Innovation Innovative features found in this next generation air band panel mount transceiver are why more pilots trust Icom as the one you add before flight. White OLED Display and White Key Back light The IC-A220 has a bright organic light emitting diode (OLED) display with a wide 170-degree viewing angle. White characters on a black background give the viewer clear, easy to read operating information. The white key back lighting and white OLED display match a modern plane’s instrument panel. In addition, the auto dimmer function adjusts the display for optimum brightness for either day or night. Easy channel selection It is fast and easy to select any of the memory channels in the IC-A220. The “flip-flop” arrow button switches between main and stand-by channels. The dual watch function allows you to monitor two channels simultaneously. Additionally, the improved auto stack memory stores the last 20 channels used and allows you to recall those channels easily. GPS memory function When connected to an external GPS receiver* equipped with an airport frequency database, the frequency data such as nearby airports can be transferred and made available. * Ask your dealer for available GPS receiver details. 12V/24V DC power source The built-in DC-DC converter accepts a 12/24V (11.5–27.5V) DC power source. The IC-A220 is easily installed in most airplanes or vehicles. Intercom functions The IC-A220 has a built-in voice activated intercom function allowing the pilot to talk with the copilot via the headset. The IC-A220 has an adjustable audio level and squelch control functions. Easy installation The IC-A220 has a D-Sub 25-pin industry standard connector for easy installation. The slim case can be installed into a tight panel space. |
Features
- 20 regular memory channels with a 6-character channel name
- 50 group memory channels (10 Ch x 5 groups) with a channel tag
- Automatic weather channel scanning and receive (USA version only)
- Dualwatch and priority watch functions
- One-touch access to 121.5 MHz emergency frequency
- Side tone function for monitoring your voice with headset
- ANL (Automatic Noise Limiter) function reduces pulse type noise
- Remote control capability
- PC programming capability
- Dial lock and panel lock
- Time-out timer
- D-Sub 25-pin industry standard connector for easy installation
- Slim 1.34 inch (34mm) height can be installed in a limited panel space
- Two types of menu mode: settings menu and configuration menu
In the Box
- A220 Transceiver - 1
- Mounting bracket - 1
- D-Sub 25 pin connector - 1
- Connector pins (M39029/63-368) - 25
- Screws Bind UNC (No. 4 × 3/8) - 2
- K-Lock Nut (No. 4) - 2
- BNC-LP - 1
- Washer (Icom washer V) - 1
- C-shaped ring - 1
- Antenna cable clip - 1
- Self crimping nut (No. 6) - 1
- Screw (No. 6 × 1/2) - 1
- Nut (No. 6) -1
- Crimp nuts (No. 6)- 6
- Speed nut UNC (No. 6) - 4
- Screws (No. 6 × 1/2) - 6
- COMM1 sticker
- COMM2 sticker
Specifications
General
| Frequency coverage: | |
| Tx/Rx | |
| 8.33kHz spacing | 118.000–136.992MHz |
| 25kHz spacing | 118.000–136.975MHz |
| Rx Wx channels | 161.650–163.275MHz* |
| (*USA version only.) | |
| Mode: | AM (6K00A3E, 5K60A3E) |
| Frequency spacing: | 8.33kHz/25kHz |
| Frequency stability: | ±5ppm |
| Operating Temperature: | -20°C to +55°C |
| Antenna impedeance: | 50Ω |
| No. of memory channels: | 20 regular memory, |
| 50 group memory, | |
| 10 GPS, | |
| 10 Weather*, | |
| 20 auto stack memory | |
| (* USA version only) | |
| Power supply requirement: | 13.8V/27.5V DC (Negative ground) |
| Dimensions (W×H×D): | 160×34×271 mm; 6.3×1.34×10.67 in |
| (projections not included) | |
| Weight (approx.): | 1.0 kg; 2.2 lb |
Transmitter | |
| Output power: | 8 W typical (carrier power) |
| Spurious emission: | –60dBc |
| Modulation limiting: | 70% (Maximum 98%) |
| Microphone impedance: | 600Ω |
Receiver | |
| Intermediate frequencies: | 38.85MHz/450kHz (1st/2nd) |
| Sensitivity: | |
| AM | Less than 2μV |
| FM | Less than 1.4μV |
| Selectivity: | |
| 25kHz spacing | ±3kHz/±22kHz (6dB/60dB) |
| 8.33kHz spacing | ±2.778kHz/±7.37kHz (6dB/60dB) |
| Spurious rejection: | More than 74dBμ |
| Audio output power: | |
| External SP | 5W with a 4Ω load |
| Headphone | 60mW with a 500Ω load |
