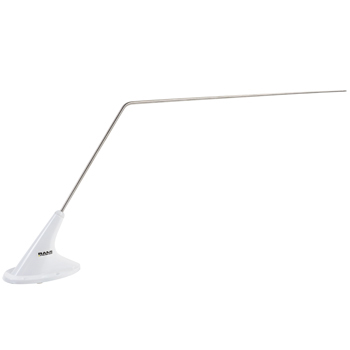

RAMI AV-17 COMMAntenna TSO

RAMI AV-17 COMMAntenna TSO

https://www.roctexo.com/web/image/product.template/114445/image_1920?unique=d4731c3

Part Number(s): 11-12700, AV-17

223.30 € 223.3 EUR 223.30 € Tax Excluded

2,355.53 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-11-12700

Overview

The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and a low profile configuration that makes it ideal for helicopters and low-wing aircraft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph.


Specifications

  • Application: Airborne Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 3.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 8 oz
  • Max Height: 8-3/4"
  • RF Power Capacity: 25 Watts
