Whelen Orion 5002V 28V Tail Pta Light White

https://www.roctexo.com/web/image/product.template/3496/image_1920?unique=e833657

Part Number(s): 01-0771774V02, 11-11977

577.40 € 577.4 EUR 577.40 € Tax Excluded

6,282.10 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-11-11977

Overview

Whelen Engineering is proud to introduce the ORION500 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION500 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofit-able to the Whelen legacy strobe products. The ORION500 series is quite simply the brightest form of LED Anti-collision and Position lighting available.

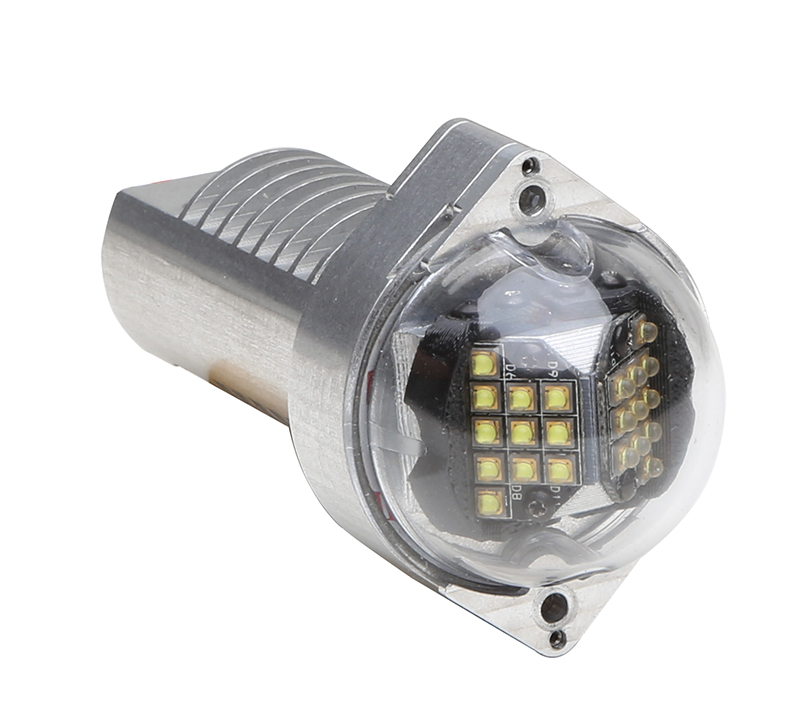

ORION™ 500 Position/Anti-Collision Light-head:
All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation.
  • Fully FAA/TSO-C96a & TSO-C30c Approved
  • FAR SPEC Certified
  • STC SA800EA
  • Replaceable hard coated polycarbonate lens to maintain maximum light output
  • Aerodynamic design without sacrificing light output
  • Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
  • Environmentally tested and certified to RTCA/D0-160G standards

Specifications

  • Drawing Number: 71774
  • Weight: .28 lbs (127gm)
  • Current Draw (12V/28V):0.20/0.10 Amp (Position), 0.38/0.19 Amp (Anti-Collision)
  • OR5001V: 3.8 AMPS
  • OR5002V: 1.9 AMPS
  • Position LED Colors: Aviation White
  • Anti-Collision LED Color: Aviation White
  • Lenses: Clear Hardcoated Polycarbonate

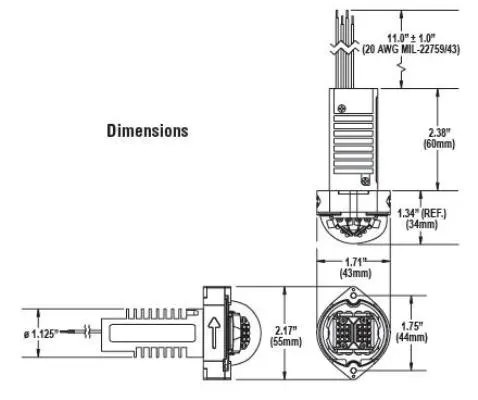

  • Dimensions (H x W x L): See Dimension Drawing.
