Whelen Orion 6502Re 28V Embedded Pta Red

https://www.roctexo.com/web/image/product.template/106939/image_1920?unique=595898d

Part Number(s): 01-0790701-12, 11-11974

674.34 € 674.34 EUR 674.34 € Tax Excluded

7,375.64 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-11-11974

Model Num.DescriptionApprovalsPart Number
OR6502REEmbedded PTA Red, 28VFAA TSO-C96a Class II/TSO-C30c Type I & III11-11974

Overview

Whelen Engineering is proud to introduce the ORION650E Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION650E series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofit-able to the Whelen legacy strobe products. The ORION650E series is quite simply the brightest form of LED Anti-collision and Position lighting available.

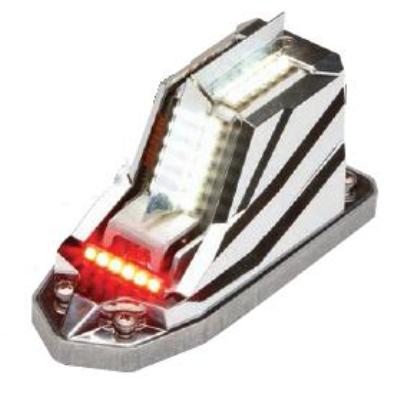

ORION™ 650E Position/Anti-Collision Light-head:
All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation.
  • Fully FAA/TSO-C96a & TSO-C30c Approved
  • FAR SPEC Certified
  • STC SA800EA
  • Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
  • Environmentally tested and certified to RTCA/D0-160G standards

Specifications

  • Drawing Number: 90701
  • Weight: .27 lbs (122gm)
  • Current Draw (12V/28V): 0.30/0.15 Amp (Position), 0.70/0/35 Amp (Anti-Collision)
  • Position LED Colors: Red (left) and Green (right)
  • Anti-Collision LED Color: Aviation White
  • Lenses: N/A

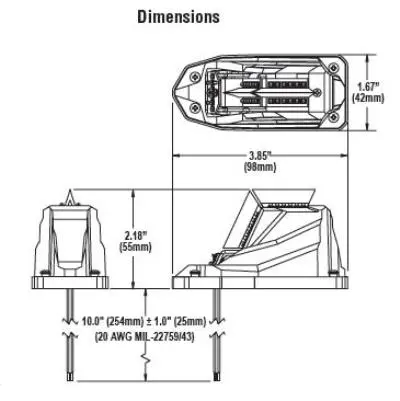

  • Dimensions (H x W x L): See Dimension Drawing.

Drawing
