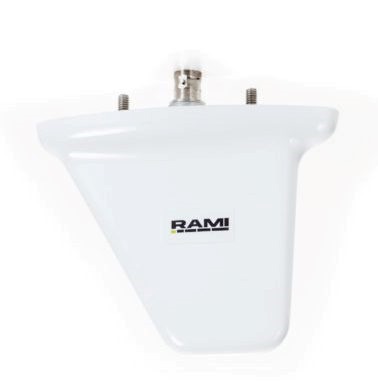

RAMI AV-74 Dme Transponder Ant TSO

RAMI AV-74 Dme Transponder Ant TSO

https://www.roctexo.com/web/image/product.template/27002/image_1920?unique=003a4a7

Part Number(s): 11-05846, AV-74

147.07 € 147.07 EUR 147.07 € Tax Excluded

1,621.70 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-11-05846

Overview

The AV-74 (.425 Stud Length) & the AV-74-1 (.800 Stud Length) are a broadband blade type antenna for transponders or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105.
  • Application: Transponder/DME
  • Frequency: 960 - 1220 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5:1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: "BNC" Female
  • Max Height: 3.4"
  • RF Power Capacity: 2.5 kW Peak
  • FAA TSO: C66c, C74c
