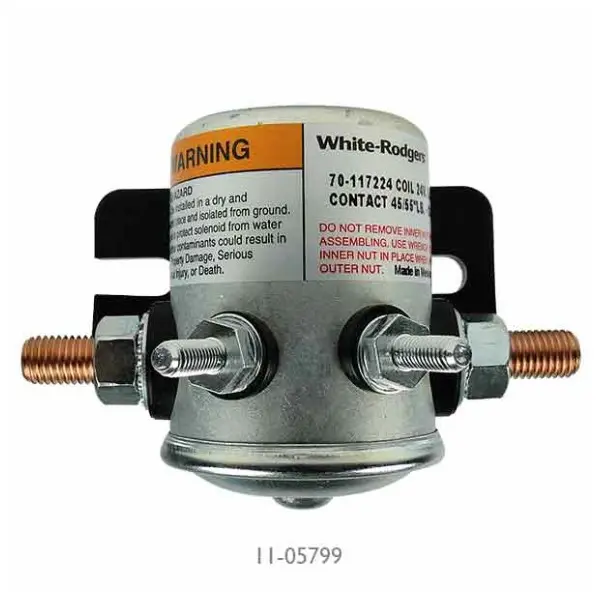

Master Relay 24V
Part numbers
:
RX1-11-05799
, 70 117224S1
, 11-05799
Unit of Measure:
EA
| Voltage | Coil Termination | Manufacturer PN | Part No. |
|---|---|---|---|
| 24V | Isolated Coil | 70 117224 S1 | 11-05799 |
Overview
| (Battery Solenoid) - Applicable to all homebuilts. Continuous duty. 12V and 24V. NOT FOR CERTIFIED AIRCRAFT |
Features
- High current capacity control
- Isolated or grounded coils
- Enclosed in dust-resistant case
- Longer steel encasement permits lower heat rise and more sensitive operation on Type 71
Specifications
- Dielectric Strength: 500 Volts
- Temperature Range: -40°F/-40°C to 122°F/50°C
- Mechanical Life (no load): 250,000 operations
- Electrical Life (rated load): 100,000 operations
- Mounting Position: Recommended mounting with cap down
- Vibration: 5 g’s vertical and horizontal planes
- Weight (approximate): Type 70–14.0 oz.
- Duty Cycle: Continuous
- Hardware Torque Specification: Contact Terminal: 45-55 inch-lbs, Coil Terminal: 12-18 inch-lbs.
- Mounting Bracket: 100 inch-lbs. max (a backup wrench must be used to hold the bottom nut stationary during installation)
