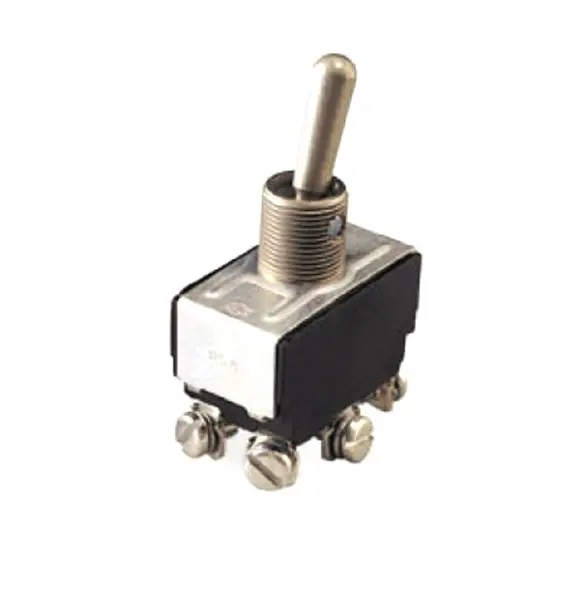

Toggle Switch AN3027-4
Part Number(s): 11-04678, AN3027-4
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-04678
| AN No. | MS No. | Mfgrs. PN | Contact | Toggle Circuit Code |
|---|---|---|---|---|
| AN3027-4 | MS35059-24 | JBT - MS No. | DPST | 7 |
Overview
| Toggle switches are available with two or three operating positions, 1 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size. Leading manufacturers of toggle switches are Micro Switch, Alcoswitch, Cutler Hammer, & JBT, now Cutler Hammer. Orders will be filled with switches of the manufacturer whose product is available in local stock. Note: * Momentary Contact |

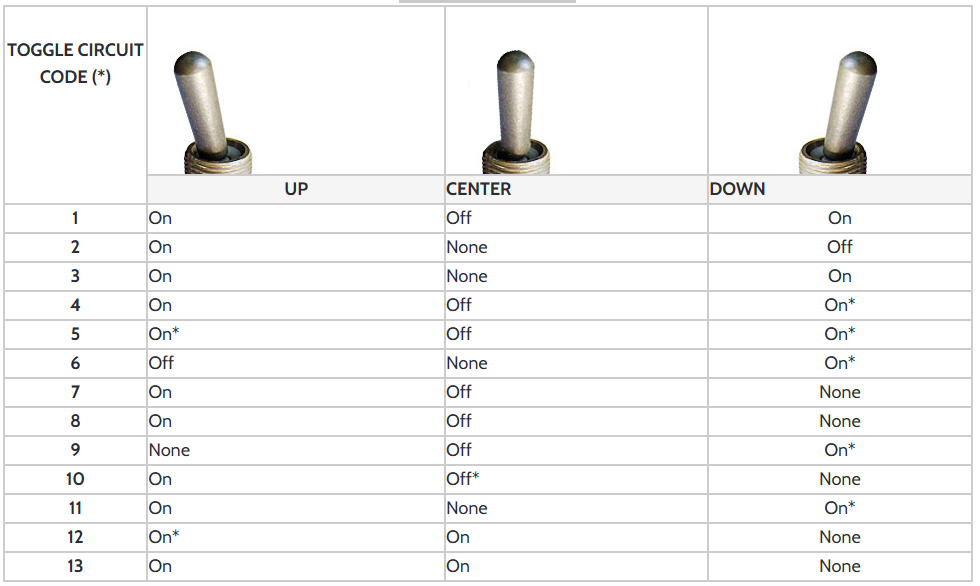

Toggle Circuit Table
| Circuitry with Toggle at |
* Momentary contact
Dimensions
Reference Chart
