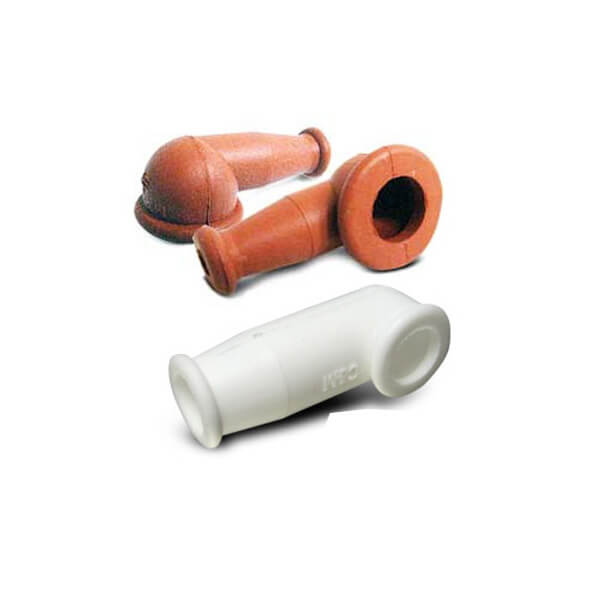

Silicone Nipple MS25171-1S Red
Part Number(s): 06399-5, 11-03913
Unit of Measure Name:
Units
Internal Reference:
RX1-11-03913
Overview
| Right angle nipples made of silicone rubber MIL-R-5847, Class II, Grade 50. A-A-59178B |
Specifications
| A-A-59178B | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| Dash No. | Max. | ±.125 | ±.005 | Dia. | Dia. | Dia. | Dia. | Dia. |
| -1 | 1.38" | 0.56" | 0.06" | 0.4" | 0.63" | 0.16" | 0.41" | 0.76" |
| -2 | 2.5" | 1" | 0.06" | 0.56" | 0.82" | 0.31" | 0.56" | 0.95" |
| -3 | 2.5" | 1" | 0.06" | 0.56" | 0.82" | 0.43" | 0.68" | 0.95" |
| -4 | 2.5" | 1" | 0.06" | 0.56" | 0.82" | 0.56" | 0.82" | 0.95" |
