ACS Ignition Service Kit A-3650-2

Consists of replacement internal switch contacts, lubricant, diode assembly, and terminal board as required for compliance with ACS Ignition Switch Service Bulletin SB92-01. Kit A-3650-2 contains diode assembly for starter solenoids with one or two coil contacts.

JUMPER USED WHEN LEFT MAG HAS IMPULSE

COUPLING OR IS RETARD BREAKER MAG

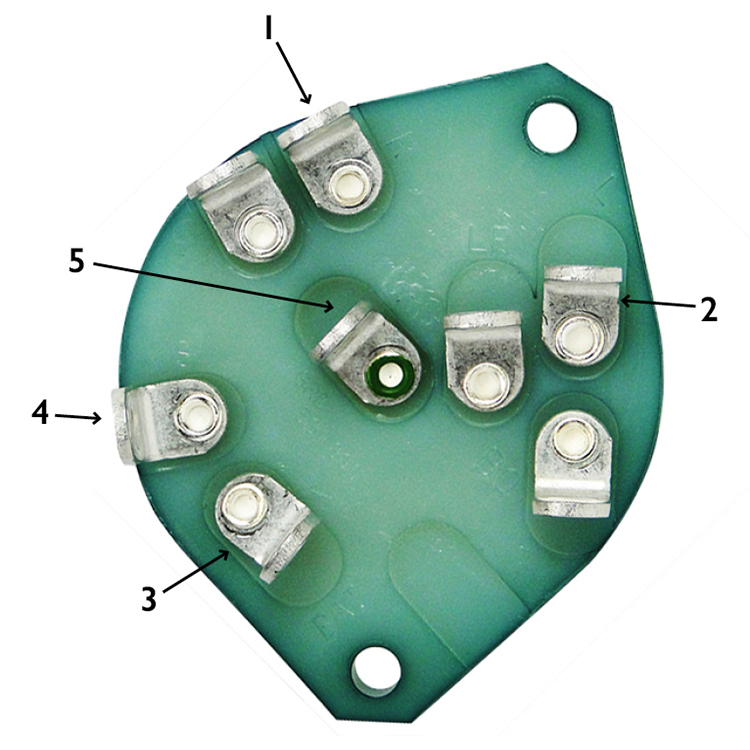

Installation of Ignition Switch

A) Use SHIELDED wire on all connections and ground to nearest structural member.

B)  Terminal 1 must have a jumper installed when LEFT MAG has IMPULSE COUPLING or is RETARD BREAKER MAG.

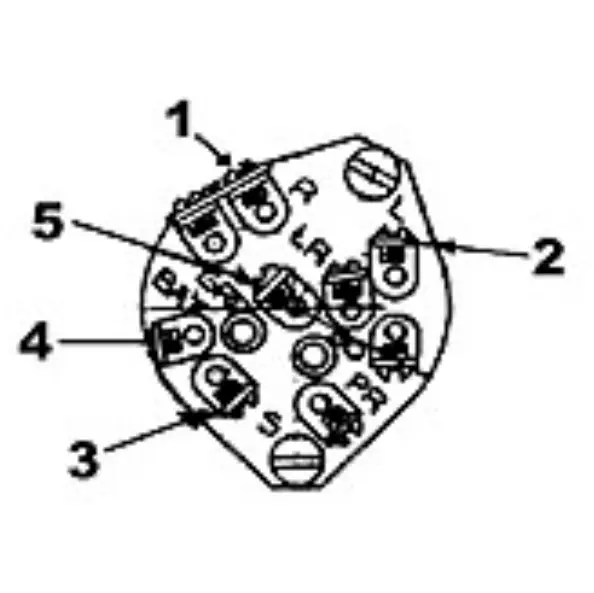

C)  Connect wire from RIGHT MAG to terminal 1 of drawing.

Connect wire from LEFT MAG to terminal 2 of drawing.

Connect wire from STARTER SOLENOID to terminal 3 of drawing.

Connect wire from Positive terminal of power supply to terminal 4 of drawing.

Connect wire from terminal 5 of drawing to nearest structural membe.
