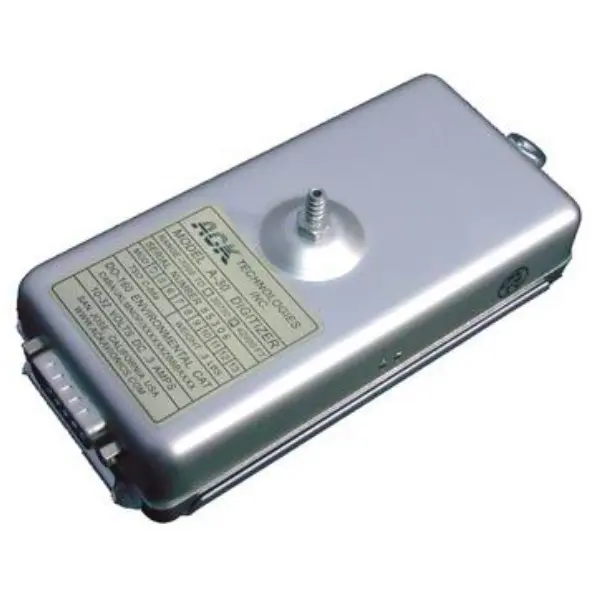

ACK A-30.5 Encoder 30K
Part Number(s): 11-01561, A-30.5
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-01561
Overview
| Add Mode C capability to your aircraft the most cost-effective way. The ACK encoder features the latest solid-state electronics for high reliablity. Installation is quick and easy and usually is completed in less than one hour. It is compatible with most transponders in use today and reports altitude to 30,750 ft. Includes quick-release mounting try, 4-ft. color-coded wiring harness with prewired jack, static line and fittings for installation in any aircraft, and installation manual in any aircraft, and installation manual with popular transponder pin-outs. 3 year warranty. Includes: • Quick Release Mounting Tray • 4 Foot Harness • 4 Foot Static Line • Installation Manual • Three Year Guarantee |
Features
- High Quality Construction
- Gold Plated Connectors
- Diecast Aluminium Chassis
- Anodized
Specifications
- Approvals: FAA TSO C-88a
- German LBA 10.221/4
- Range: MOD 5 –950 to 30,750 feet /w gray code Output
- Accuracy: Typical +- 20 feet Maximum +- 50 feet
- Size: L 6” W 2.65” H 1.3”
- Weight: 5.1 oz (144 grams)
- Operating voltage: 10 to 32 VDC
- Operating current: 60 mA typical
- Operating temp: -4 to +131° F -20 to +55° C
- Warm-up current draw: 14VDC 420 mA 28VDC 220 mA
- Warm-up time: 70° F ambient 60 seconds 0° F ambient 210 seconds
- Altitude resolution: Gray code (parallel) output 100ft
Warranty
Avionics products manufactured by ACK Technologies, Inc. are warrantied against defects in materials and workmanship for a period of three years from their manufacture date. This warranty is limited exclusively to repair or replacement of the E-04 ELT and associated parts which were manufactured by ACK Technologies, Inc. the defective parts must be returned freight prepaid to our manufacturing facility. This warranty does not include repair or replacement of any part that has been improperly used, installed or physically damaged. This warranty does not cover any damage caused by chemical exposure. Discharge of the ELT lithium battery is not covered by this or any other warranty. Except as provided herein ACK Technologies, Inc. makes no express warranties, and any implemented warranty of merchantability of fitness for a particular purpose is limited in its duration to the duration of the written limited warranties set forth herein. ACK Technologies, Inc. shall not be liable for any direct, indirect, special or consequential damages arising from the use or misuse of this product. Except as provided herein no employee, agent, dealer, or other person is authorized to give any warranties of any nature on behalf of ACK Technologies, Inc. YOU MAY HAVE ADDITIONAL LEGAL RIGHTS WHICH VARY FROM STATE TO STATE
