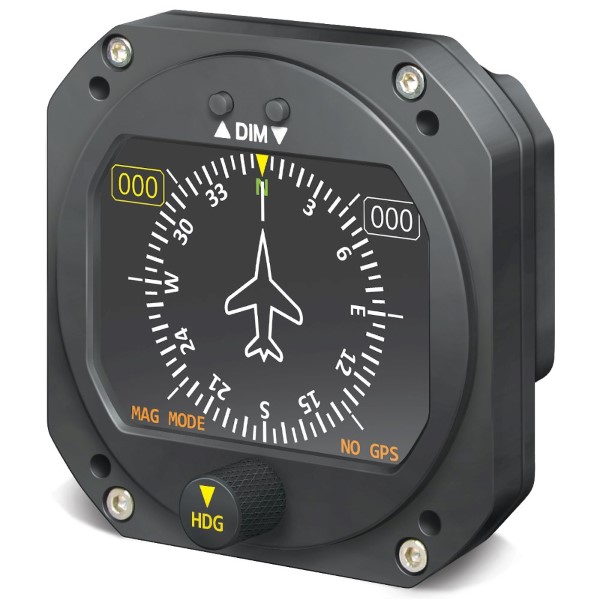

RC Allen RCA1510-3 RS232 Digital Heading Indicator 0 Degree Tilt
Part Number(s): 10-07410, 103-0503-03-05
Unit of Measure Name:
Units
Internal Reference:
RX1-10-07410
| Description | Tilt Angle | Model Number | Part Number |
|---|---|---|---|
| RC1510-3 Digital Heading Indicator, RS232 Serial Connection | 0 | 103-0503-03-05 | 10-07410 |
Overview
| Note: Standard tilt is 0 degrees. Made to Order custom tilt option available, part # 10-07138. Option prompt will be offered once base unit is added to the cart. The RCA1510 Series Digital Heading Indicator is the latest addition to the RC Allen Digital Instrument Lineup. It is the perfect companion to the RCA2610 Digital Attitude Indicator. The RCA1510 is designed as a fully FAA Certified direct replacement for your mechanical Directional Gyro. It is totally self-contained and fits in a standard 3-inch panel cut-out. There are no special external connections other than power and an external GPS antenna. The Multi-Volt function (9-32V) allows installation in both 14 Volt and 28 Volt systems. The RCA1510 combines data from its own internal magnetometer and GPS receiver for a more stable and accurate heading reading which also eliminates the need to “cage” or “zero” the instrument. Because the RCA1510 has no mechanical gyroscope, it is much more accurate than traditional heading indicators. Unlike a mechanical gyroscopic unit, the RCA1510 is not affected by drifting or wandering. The unit is designed to work without GPS input if the GPS signal is lost. The highly visible screen has adjustable brightness controls. It has a traditional rotating dial display with digital numeric headings. The pilot can adjust the Heading Bug just like a mechanical instrument or use the Quick-Set Heading Bug; a double-push of the HDG knob sets the Bug to the current heading. The panel tilt angle can be set from 0 to 90 degrees in one degree increments, but must be specified at time of order. Made in the USA |
Features
- Totally self-contained
- Quick-set Heading Bug
- Internal Magnetometer and GPS
- Sharp Dimmable Display
- Dual Processor Performance
- Multi-volt Operation (9 to 32 Volts)
- Fits standard panel cutout
- Vibration Resistant
- All digital - No moving parts
- Black anodized bezel
- Lightweight - 8oz. Max
- FAA Certified
Specifications
- Operating Voltage: 9 to 32VDDC
- Running Current: (14VDC system) 0.20 AMPs MAX, (28VDC system) 0.18 AMPs MAX
- Circuit Breaker Size: 1AMP
- Accuracy: 2 Degrees
- Operating Temperature Range: -20º to +55º C
- Mating Connector: MS3116E8-4S or equivalent
- Dimensions: Please see specifications document.
- Weight: 8 oz. Max
- FAA Specification Conformance: TSO-C6e, TSO-C113a, DO-160G & DO-178B Level C
