Bank Indic Ball Type 10-10 M23
Part Number(s): 10-00600, 1040
Unit of Measure Name:
Units
Internal Reference:
RX1-10-00600
Overview
| Bank indicators show lateral inclination relative to the horizon. In turning, instantly register slightest departure from the correct banking angle. Bank scale has white markings on a black background. New manufacture. Available in 2 models. Approximate dimensions: 10-00600 = 2.5" L x 1" W 10-00700 = 5.5" W x 1.5" L |
Specifications

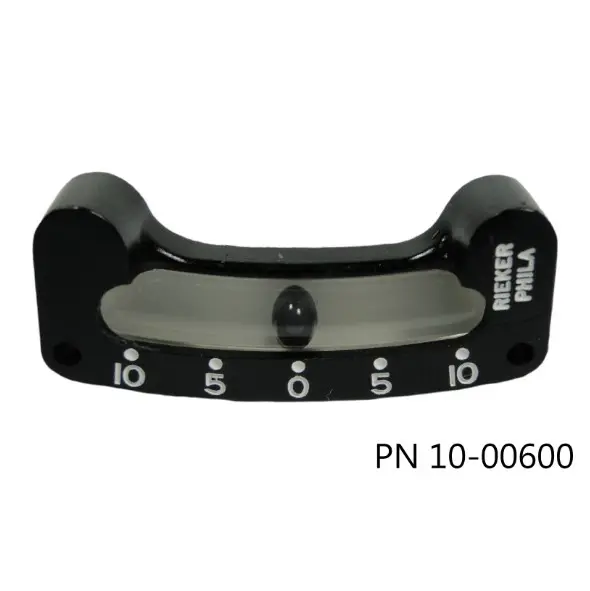

Part No. 10-00600
- Dimensions: 2-9/16"w X 1-1/8"h X 1/2"d
- Degree Range: ±10°
- Degree Markings: 5°
- Case Materials: Black painted aluminum, engraved markings filled white
- Tube Construction: Glass with black ball on white background
Part No. 10-00700
- Dimensions: 5-3/8"w X 1-3/4"h X 5/8"d
- Degree Range: ±20°
- Degree Markings: 1°
- Case Materials: Black painted aluminum, engraved markings filled white
- Tube Construction: Glass with black ball on white background
