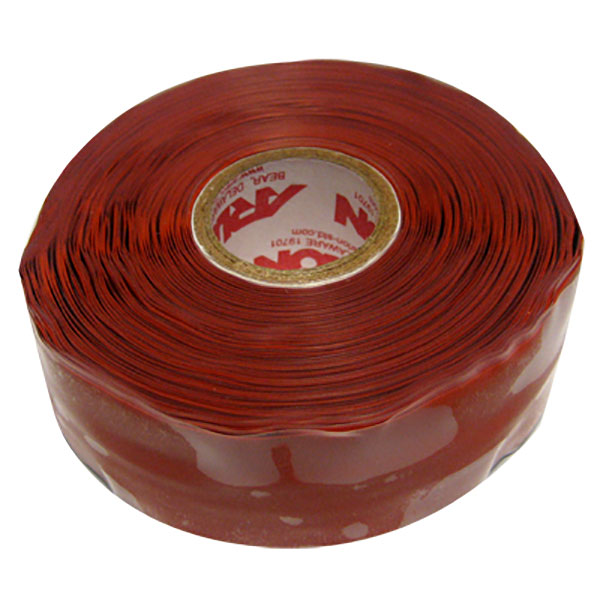

Uniwrap Silicone Tape Red
Part Number(s): 09-30450, LW201R10-P1
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-09-30450
Overview
| UniWrap silicone rubber sealing tape bonds to itself permanently to protect, repair, join, or insulate virtually any type of part on which ordinary tape can be used. But the big difference between UniWrap and ordinary tape is that it fuses to itself permanently to form a homogenous mass and provides unprecedented protection and insulating characteristics. UniWrap uses no adhesives so it is non-tacky.It has a 12 month shelf life and after fusing is unaffected by moisture, cold, heat, ozone shock, or vibration. Meets MIL-I-46852 Type II as well as strict aerospace industry performance requirements. Furnished in 10 yard rolls, UniWrap is 1" wide and 0.020" thick. |
Specifications
- Thickness (in.): 0.018-0.022
- Width (in.): 0.9375-1.0625
- Dielectric Strength (volts/mil): 400 min.
- Tensile Strength (psi): 700 min.
- Elongation (%): 300 min.
- Bond Strength (lbs.in.): 2.0 min
- Volume Resistivity: 1x10^13 min.
- Water Absorption (%): 3 max.
