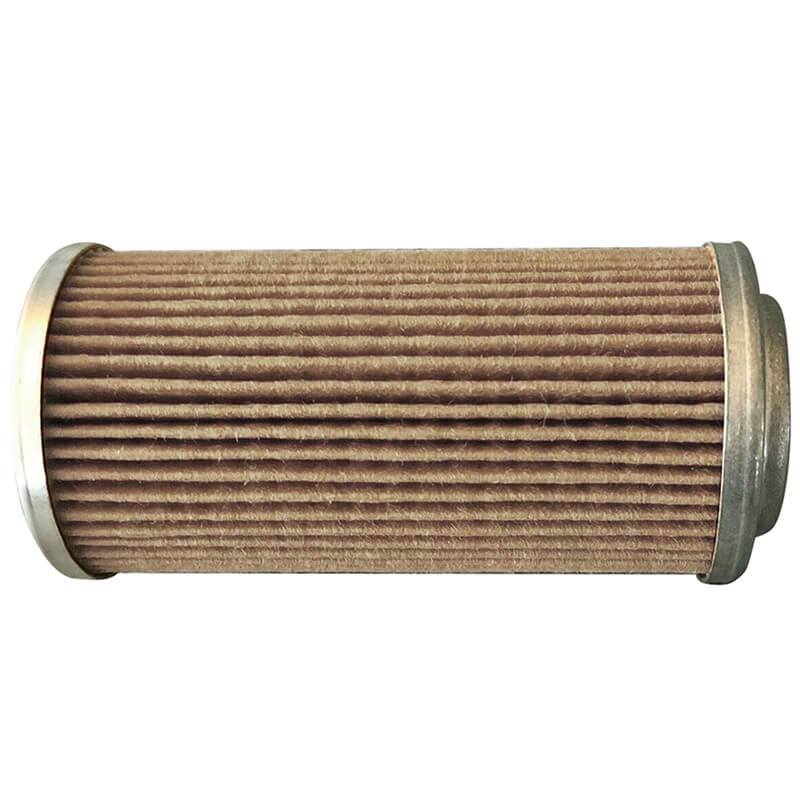

AN6235-1A Purolator Filter

https://www.roctexo.com/web/image/product.template/31316/image_1920?unique=4825199

Part Number(s): 08-07076, AN6235-1A

18.75 € 18.75 EUR 18.75 € Tax Excluded

209.61 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-08-07076

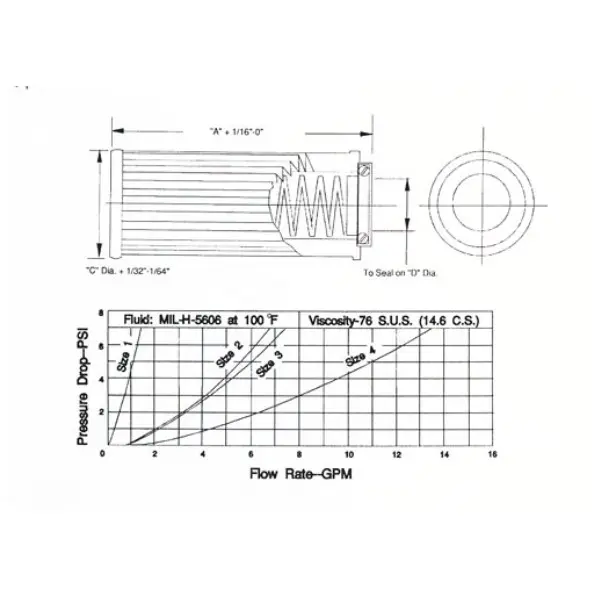

AN No.A (inches)C (inches)D (inches)Part No.
AN6235-1A1.937/1.875.859/.813.375/.37308-07076

Overview

  • MIL-F-5504 QUALIFIED
  • QUALIFIED FOR USE IN MS28720 AND AN6234 FILTER
  • ASSEMBLIES.
  • ELEMENT COLLAPSE:150PSID MINIMUM.
  • FILTRARTION:10 MICROMETERS.
  • HYDRAULIC O-RING.
  • MEDIA: MICROPLEAT(c) ELEMENTS (resin impregnated cellulose)
  • BUBBLE TEST 100%


Specifications-3A

  • P/N AN6235-3A Specifications
  • Body Diameter: 1.625 Inches Nominal
  • Body Inside Diameter: 0.891 Inches Nominal
  • Filtration Rating In Microns: 10.0 Nominal
  • Flow Direction: Inside Out
  • Design Type: Nonreusable
  • Body Overall Length: 3.438 Inches Nominal
  • Filtering Media Design: Pleated Single Filtering Media Response
  • Filtering System For Which Designed: Full Flow
  • Special Features: Used On Grumman Aircraft,model A10;with Unthreaded Mountin Hole,0.2656 In. Dia
  • Material: Paper Filtering Medium
  • Material: Metal Container/cartridge
  • Media For Which Designed: Fuel/oil, Hydrocarbon
  • Style Designator: Cylindrical W/ Container (rigid)
