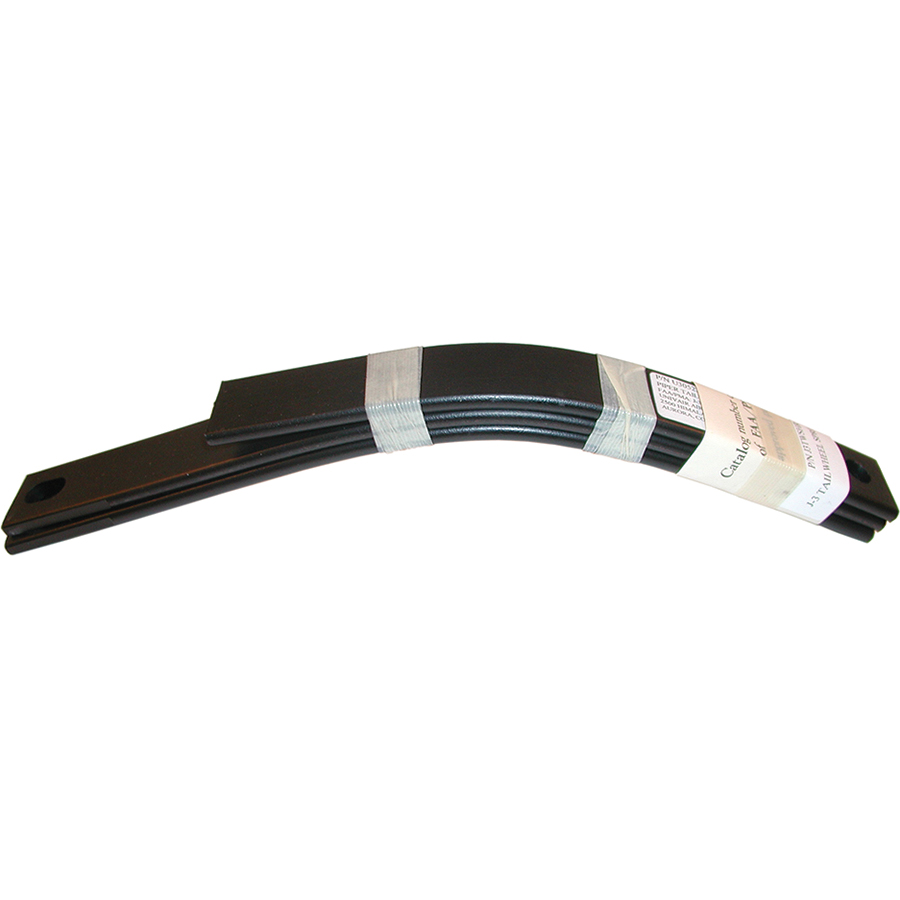

Tailwheel Leaf Spring Set # 1
Part Number(s): 06-14200, J3TWSHR
Unit of Measure Name:
Units
Internal Reference:
RX1-06-14200

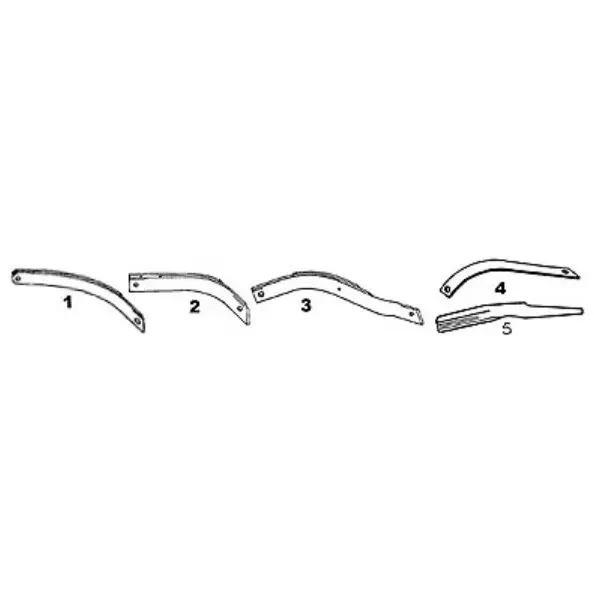

| Set No. | Spring Width (in.) | Hole Dia. Fuselage End (in.) | Hole Dia. Tail Wheel End (in.) | Distance Between Bolt Centers (in.) | Orig. App. | Wt. Lbs. | No. of Springs | PN |
|---|---|---|---|---|---|---|---|---|
| 1 | 1-1/4 | 7/16 | 3/8 | 12-1/2 | Piper J-3 (serial numbers 10339 and up), L-4, PA-11, PA-12, PA-14 (up to serial number 204) | 3-1/8 | 3 | 06-14200 |
Overview
| FAA/PMA approved subcomponents. Individual for a PA-17 however NOT approved for a PA-15. (*)= Multiple bends |
