Grove Landing Gear 1021-3

Overview

Grove Aircraft can provide a complete custom landing gear, ready to bolt on, designed for your individual airplane.

Axle Types:

Please specify axle bolt hole pattern when ordering

Type 1: Typically used for 500x5 wheels

Type 2: Typically used for 600x6 wheels.

Kitfox Model 3 & 4

Grove P/N 1021-3

Gross Weight: 1200 lbs.

Weight: 24.3 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Type 1

Includes Gundrilled Brake Line

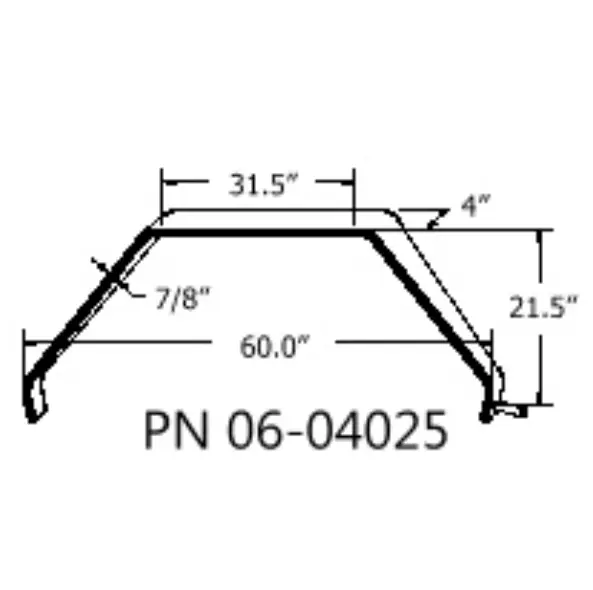

PN 06-04025

Acro Sport II

Grove P/N 1122-3

Gross Weight: 1550 lbs.

Weight: 34.7 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Type 2

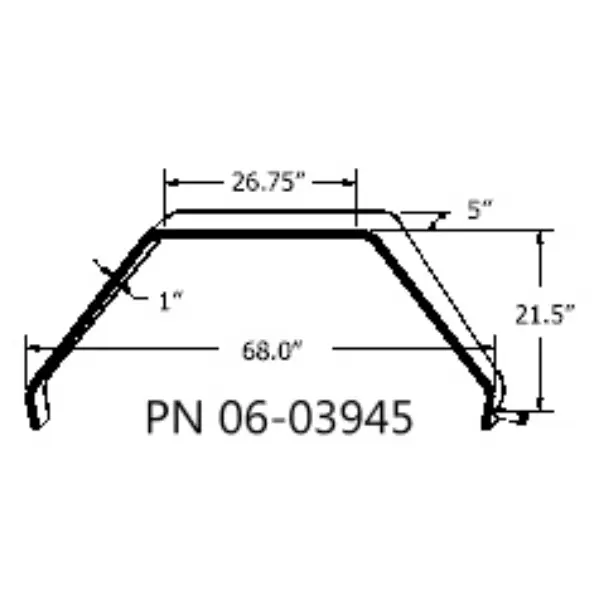

PN 06-03945

Pitts S1-11B

Grove P/N 1032-3

Gross Weight: 1500 lbs.

Weight: 32.9 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Type 1

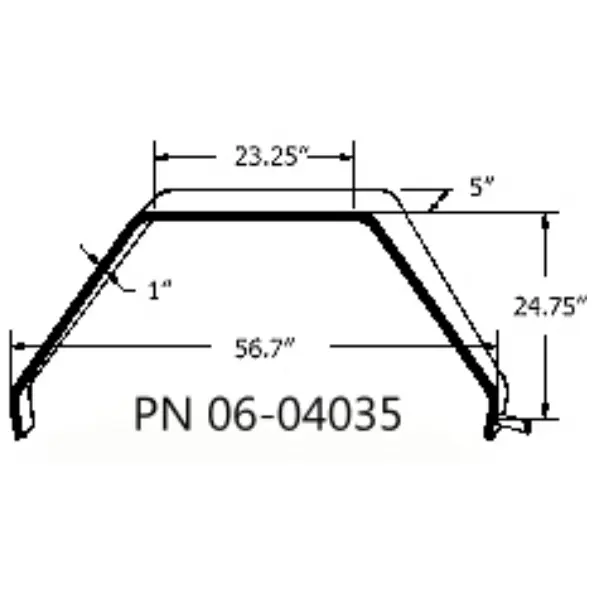

PN 06-04035

VP-1

(Free Standing No Cables)

Grove P/N 1133-3

Gross Weight: 800 lbs.

Weight: 20.2 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Type 2

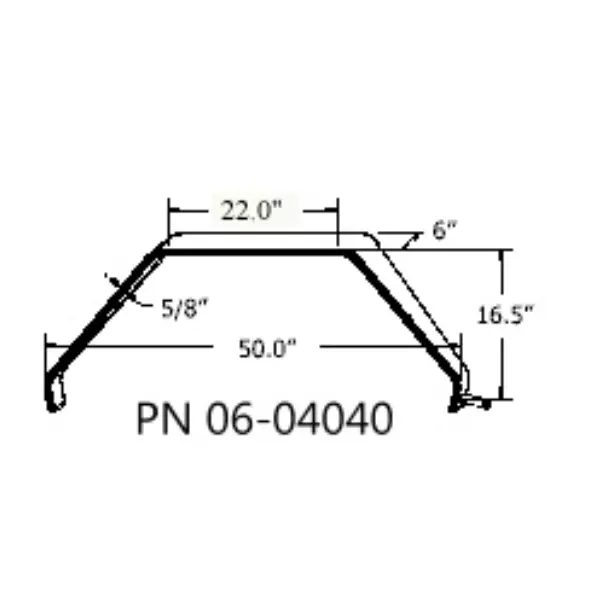

PN 06-04040

VP-1

(Cable Braced Stock Gear)

Grove P/N 1131-3

Gross Weight: 800 lbs. Weight: 12.5 lbs.

Material: 7075-T6 Aluminum Axle Bolt Hole Pattern: Type 2 Includes Lower Leaf Plates Cables not included

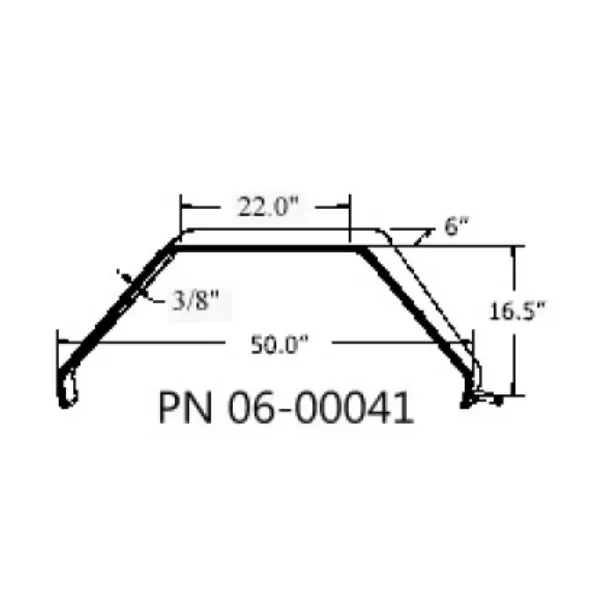

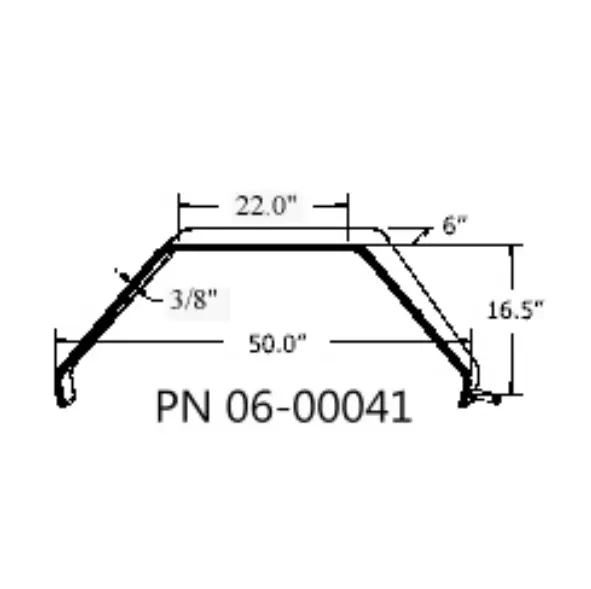

PN 06-00041

VP-2

(Free Standing No Cables)

Grove P/N 1134-3

Gross Weight: 1100 lbs. Weight: 24.5 lbs.

Material: 7075-T6 Aluminum Axle Bolt Hole Pattern: Type 2

PN 06-00043

Pitts S1

Grove PN: 1031-3

Gross Weight: 1050 lbs.

Weight: 21.0 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Type 1

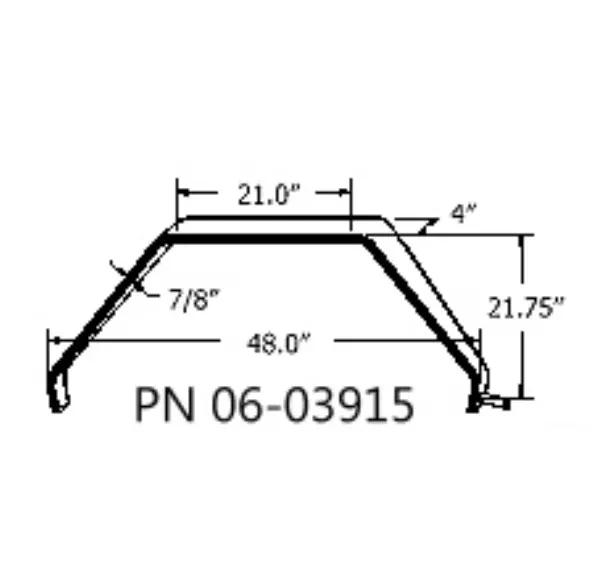

PN 06-03915

Starduster II

Grove PN: 1081-3

Gross Weight: 1950 lbs.

Weight: 46.5 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Type 2

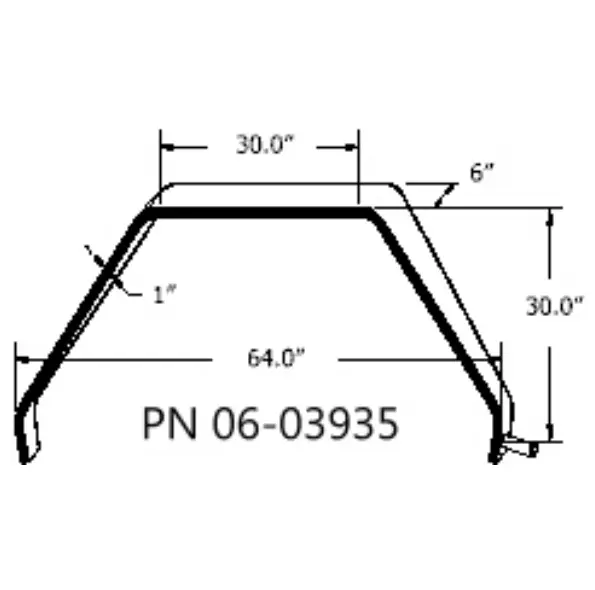

PN 06-03935

Baby Lakes

Grove PN: 1091-3

Gross Weight: 850-900 lbs.

Weight: 16.2 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Type 1

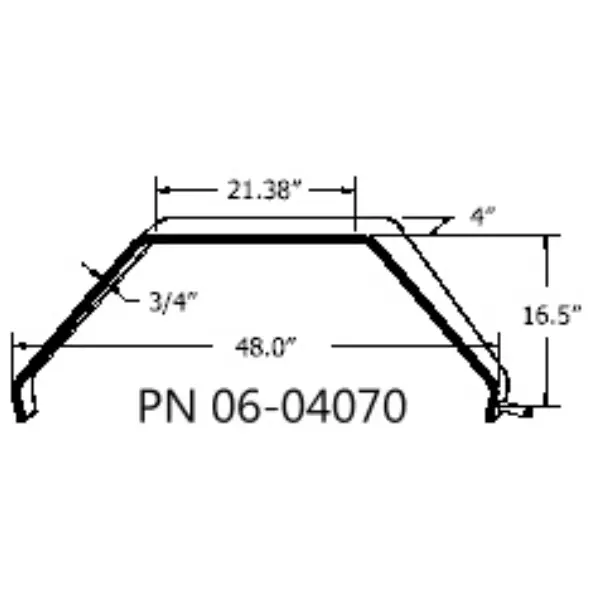

PN 06-04070

Zenair CH701

Grove PN: 1214-3

Gross Weight: 1060 lbs.

Weight: 18.1 lbs.

Material: 7075-T6 Aluminum

Axle Bolt Hole Pattern: Various

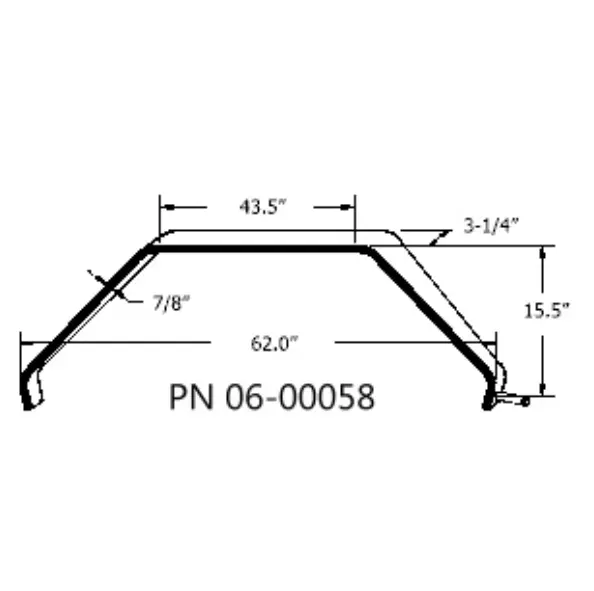

PN 06-00058
