Andair CK375M-14-Brp Check Valve
Part Number(s): 05-14969, CK375M-14-BRP
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-05-14969
| art Number | Model | Bleed | Fittings |
|---|---|---|---|
| 05-14969 | CK375-M-BRP | -- | -- |
Overview

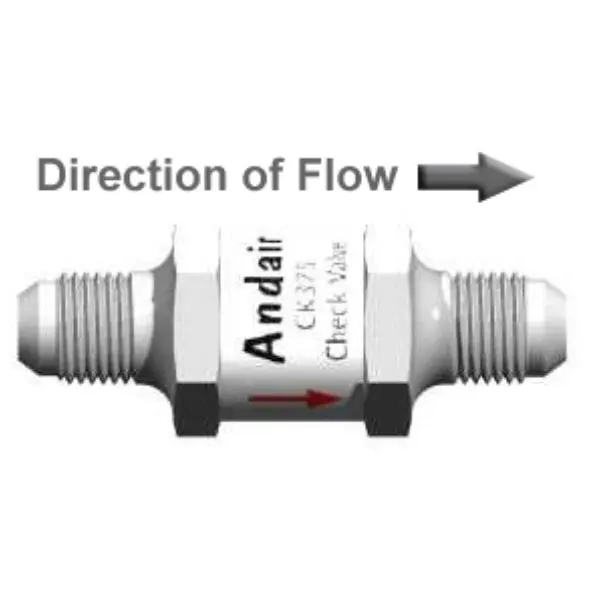

| Built from aircraft grade Aluminum and anodized for corrosion protection this lightweight and compact unit is excellent. The check valve is ideal for tank vents and high pressure fuel pump bypass lines. Its extremely light weight internal shuttle operates with the slightest pressure yet the internal O-ring seals allow the unit to be used up to 50 PSI. Other qualities include break out pressure less than 1 PSI, great flow characteristics around shuttle, and bleed allows shuttle to weep off pressure in the event of a blocked line. Features AN-6 (3/8") fitting on bottom. Valve measures 5/16" dia. x 2.75" long. |
