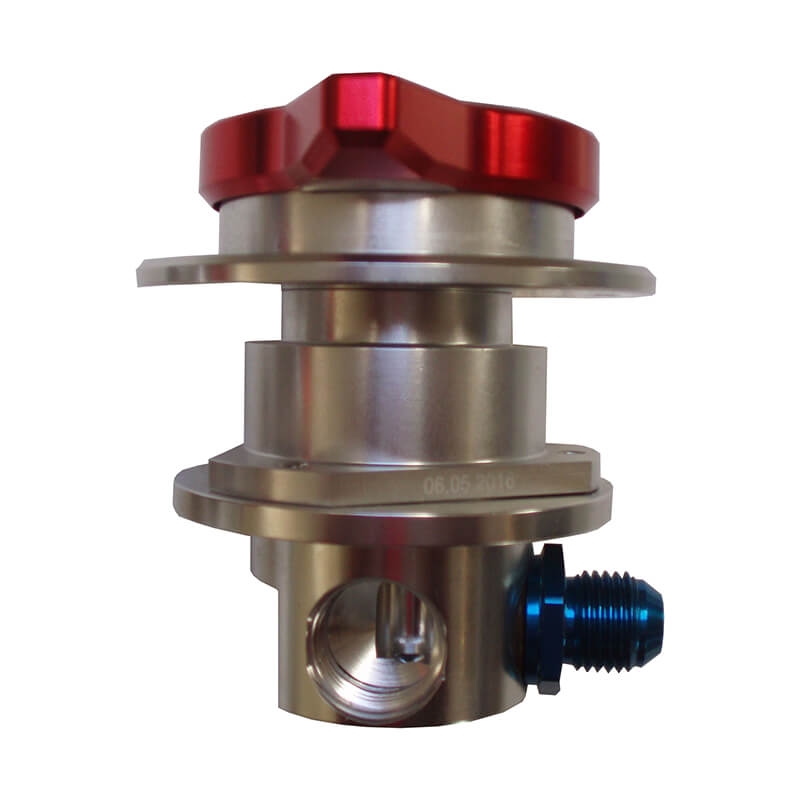

V1-4-P-C Newton Sprl Valve
Part Number(s): 05-11465, V1-4-P-C
Unit of Measure Name:
Units
Internal Reference:
RX1-05-11465
| Description | Part Number |
|---|---|

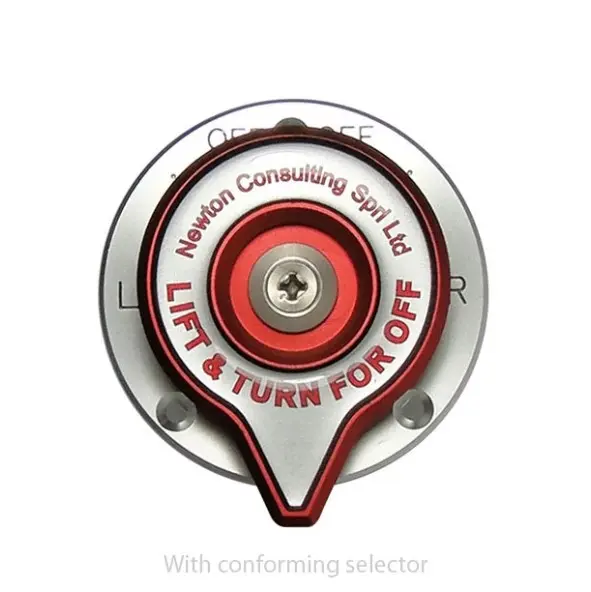

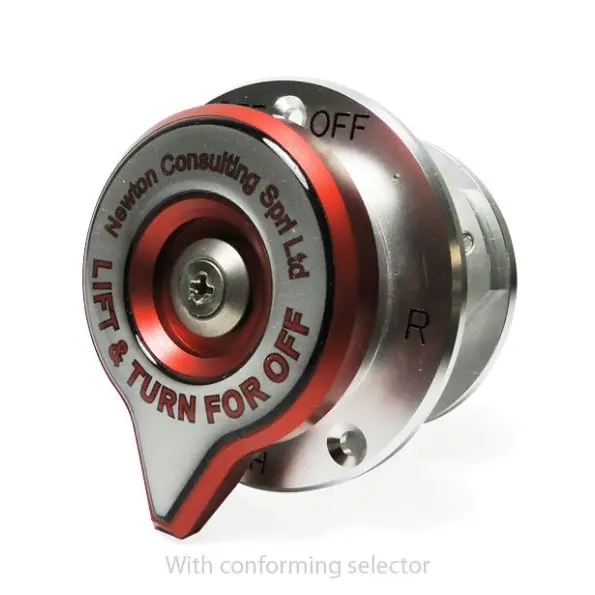

| SPRL V1-4P-C way fuel valve with conforming selector | 05-11465 |
Overview
| After a long development process, here's a completely new family of Fuel Valves. Hi-Tech Seals give easy operation and are suitable for all current fuels. The simplicity promises a long reliable life. The SPRL-V1 is a three/four way fuel selector offering left-off-right and both if required. There are 90 degrees between selections and the absence of a lower fitting reduces the depth required. These English fuel valves have some great features that make them better than the rest. Ceramic disks have no soft moving/rubbing seals to wear out, unlike other valves but also give an 'indefinite' life with a very smooth light action. The lift and turn selector is instinctive, secure, and easier to use than the complex 'lift button' type. The locking detents avoid accidental movements. The fixings match most installations, and the internal ports prevent cross feeds, unless 'selected to 'Both'. Male AN fittings enable you to plumb straight into the aeroplane system with no extra fittings to buy. The lightweight alloy construction is anodized for protection; the Viton 0 ring seals are suitable for all current fuels. For experimental aircraft only. Please note that the accessories listed below are the the only compatible accessories; other standard accessories will not fit these valves. FAR 23 The SPRL Valves, as designed, have a very nice 'feel' and are logical in use, however, there is a requirement in FAR 23 whereby the fuel valve must be turned from OFF to an ON selection simply by turning it, i.e. it should not have to be lifted up, pushed down etc, and it should also not be possible to turn it from an ON position to OFF without a dent. See V1/V3/V4 valves with a 'conforming' selector. |
