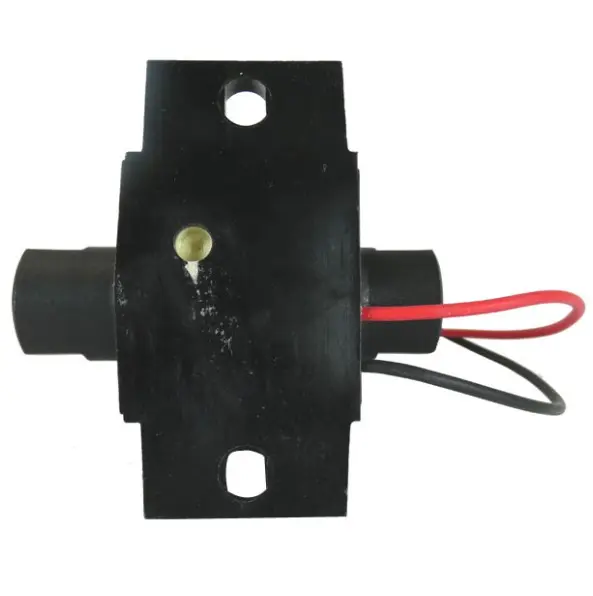

Facet 60302 Posi-Flo Pump
Part Number(s): 05-06864, 60302N
Unit of Measure Name:
Units
Internal Reference:
RX1-05-06864
| Description | Part Number |
|---|---|
| Facet 60302 Posi-Flo Pump | 05-06864 |
Overview
| Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use. Fuel Compatibility: All models of the Facet Posi-Flo Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives. Reliability: Proven on thousands of original equipment applications. No bearings, electrical contacts, or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric pumps. Easy to Install-Easy to Service:Two bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level. Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes. |
Specifications
- 12 inches minimum dry lift
- 23 - 40 GPH
- 1.5 - 10 PSI
- ESD compliant
- 1.5 amp average
- Diesel Priming and Self Regulating
- Light-Weight - Compact
- Internal 3.5 amp fuse
- Quiet valve - 65Db
| PN | OEM PN | Description | Volts | PSI Max- Min | GPH | Fitting Size | Lift Min. Dry | Check Valve | Position Shut Off Valve |
|---|---|---|---|---|---|---|---|---|---|
| 05-10856 | 60106 | Facet Psi-Flo Fuel Pump | 12 | 7.0-4.0 | 32 | 1/8 - 27 INT | 12" | N | N |
| 05-10880 | 60245 | Pump Kit- (2ea.) Straight Fuel Fittings | 12 | 4.0-1.5 | 23 | 1/8 - 27 INT | 12" | N | N |
| 05-06862 | 60300 | Facet Posi-Flo Fuel Pump | 12 | 4.0-2.5 | 20 | 1/8 - 27 INT | 50" | Y | N |
| 05-06863 | 60301 | Facet Posi-Flo Fuel Pump | 12 | 5.0-3.5 | 30 | 1/8 - 27 INT | 50" | Y | N |
| 05-06864 | 60302 | Facet Posi- Flo Fuel Pump | 12 | 7.0-5.0 | 32 | 1/8 - 27 INT | 50" | Y | N |
| 05-10881 | 60303 | Facet Posi-Flo Fuel Pump | 12 | 10.0-7.0 | 34 | 1/8 - 27 INT | 50" | Y | N |
| 05-10882 | 60304 | Facet Posi-Flo Fuel Pump | 12 | 2.0-1.0 | 15 | 1/8 - 27 INT | 24" | Y | N |
| 05-01250 | FEP04SV | Pump Kit- Straight Fuel Fittings, Nuts, Screws, Fuel Filter | 12 | 4.0-1.5 | 23 | 1/8 - 27 INT | 12" | N | N |
