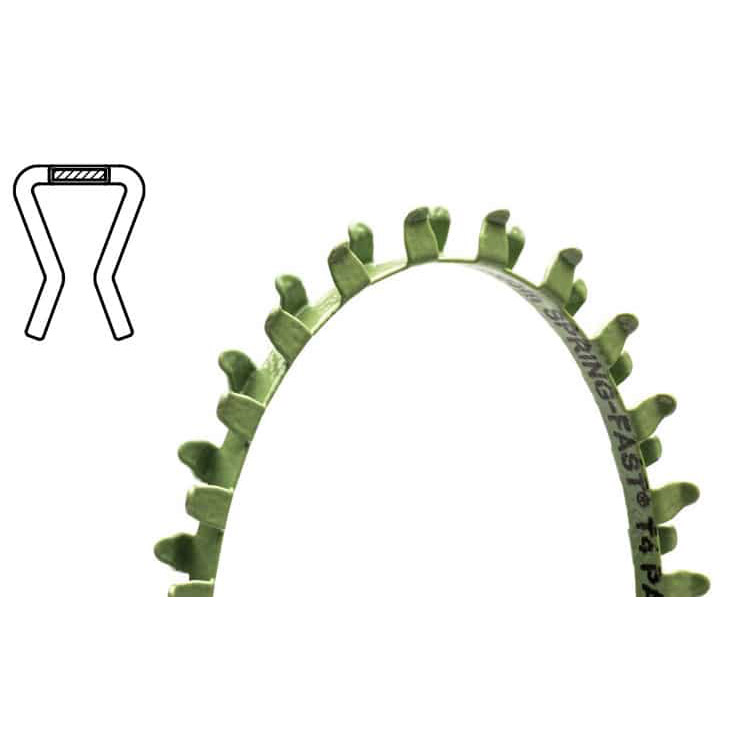

Grommet Edging M22529/1-3R
Part Number(s): 05-06506, M22529/1-3R-25
Documents
Unit of Measure Name:
ft
Internal Reference:
RX1-05-06506
| MFG Number | Sheet Thickness | PN |
|---|---|---|
| M22529/1-3R | .059-0.74 | 05-06506 |
Overview
| The MIL SPEC Series per NASM22529/1 has the lowest profile of any wire protection grommet edging available. Its steel substrate is encapsulated with lubricious fusion bonded epoxy for superior abrasion and chemical resistance. It has enhanced grip strength and is 2 axis conformable. |
Features
- Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
- Snap on installation lowers costs 49% vs. grommets with glue. Watch the 4 min. video below.
- Improves efficiency 9.5x – due to fewer steps in workflow.
- U.S. Defense Dept. FAA Acceptable: NASM22529/1 and National Stock Number: Federal Supply Code 5325.
Specifications
| Grommet Series | Castle Geometry | Flexibility | Polymer Coating | Extra Cushion | 100% TPE Encapsulation | High Heat | Mil Spec | Application Method | Notes |
|---|---|---|---|---|---|---|---|---|---|
| NASM22529/1 | Alternating | 2 axis | Yes | No | No | 293°F/145°C | Yes | Snap on/No adhesive | No cure time delay |
