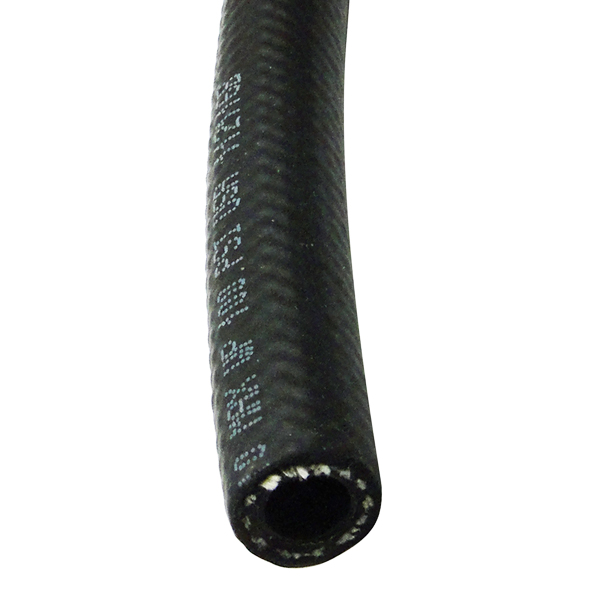

Super Flex Fuel Line Hose 1/4
Part Number(s): 05-03597, 39704
Unit of Measure Name:
ft
Internal Reference:
RX1-05-03597
PN | ID | OD |
---|---|---|
05-03597 | 1/4 | 0.500 |
Overview

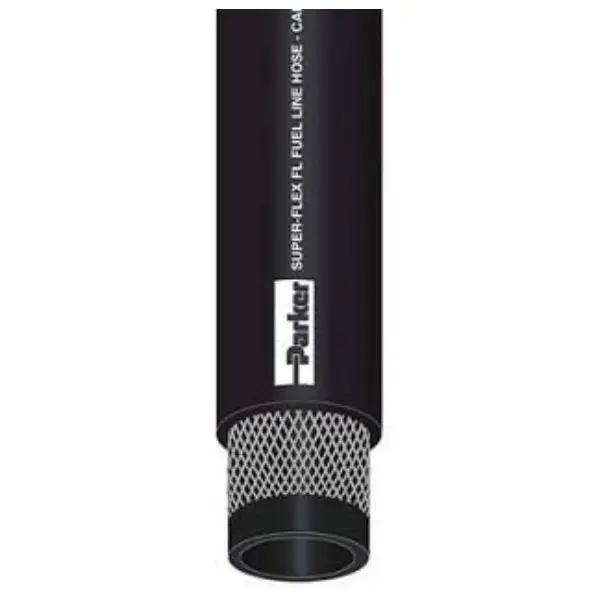

Parker's fuel line hose includes a thermoplastic barrier that helps protect the atmosphere from harmful hydrocarbons that escape through the carcass of ordinary fuel hose. This hose surpasses all of CARB's stringent permeation requirements and is similar to SAE30R7 specifications. The Super-Flex FL hose also features an abrasion and weather resistant cover to help protect from external application abuse. Approved for biodiesel fuels that meet ASTM D 6751 requirements per UL guidelines for Biodiesel compatibility. 4:1 Design factor |
Specifications
- Tube: NBR with a thermoplastic barrier
- Cover: Black Hypalon
- Reinforcement: Braided Polyester
- Temperature Range: -30°F to +257°F (-34°C to +125°C)
PN | ID (in.) | Reinf. Braids | OD (in.) | Approx. Weight per 100 ft. | Min. Bend Radius | Max Rec. WP |
---|---|---|---|---|---|---|
05-03597 | 1/4 | 1 | 0.500 | 9.7 | 1.5" | 100 |
05-03598 | 3/8 | 1 | 0.625 | 1.30 | 2.5" | 100 |
05-07223 | 5/16 | 1 | 0.562 | 11.3 | 2" | 100 |
