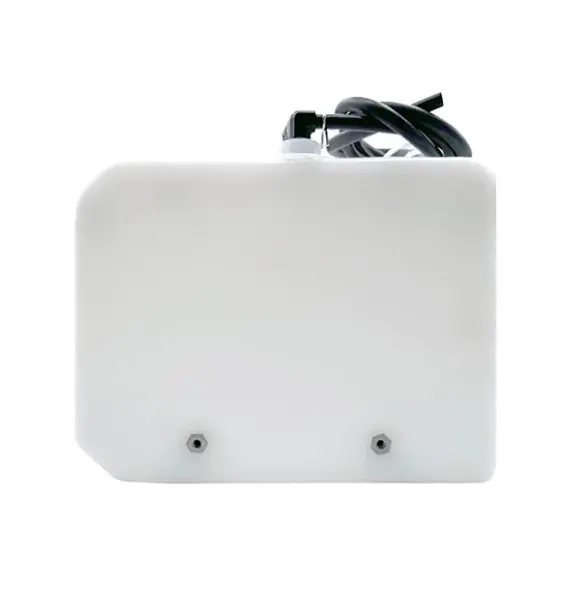

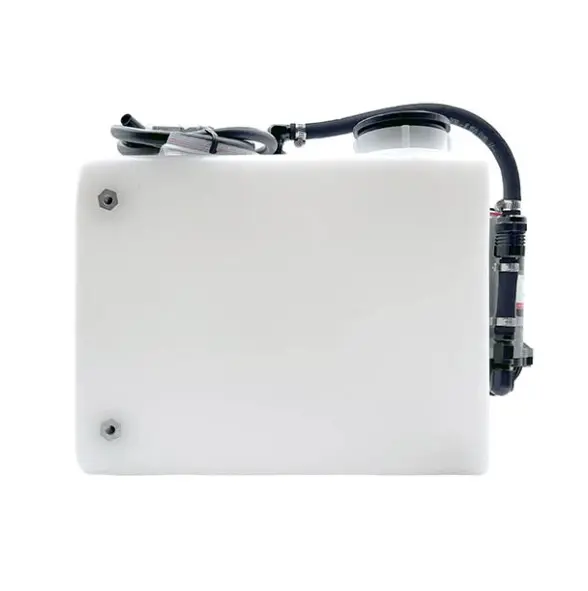

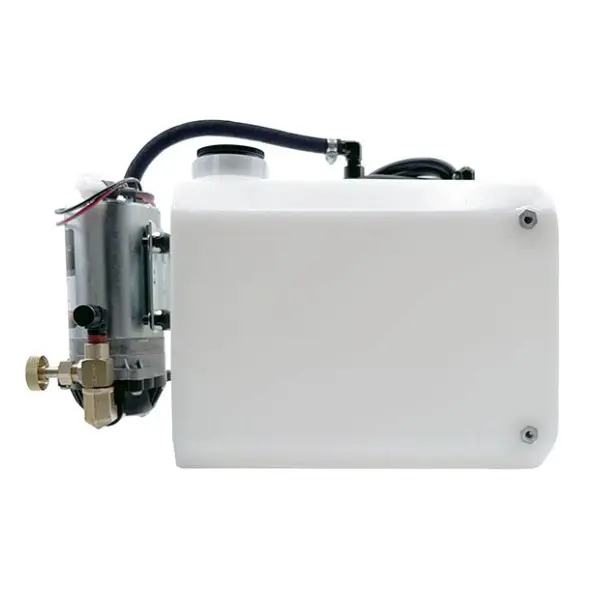

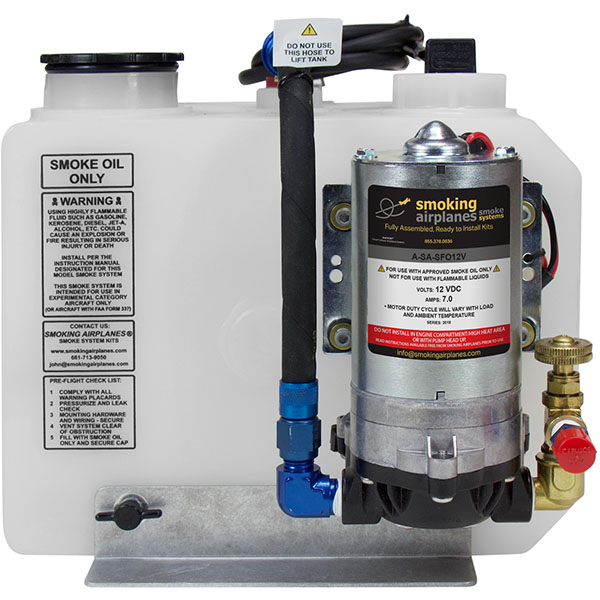

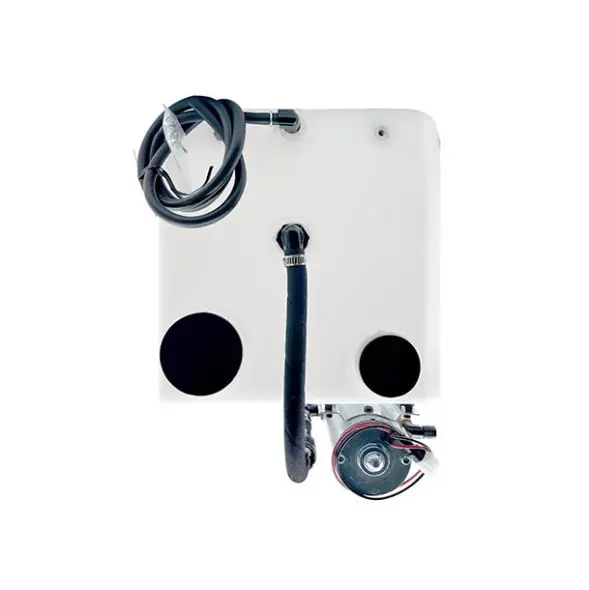

Smoking Airplanes Complete Smoke System 3.5 Gal h (Horizontal)

Overview

Features

• Rated for 18g
• 12v or 24v power ok
• Suitable for all aircraft
• Pump flow: 1.8 +/- GPM
• Spray rate: 0.8 +/- GPM
• Adjustable with incl valve
• Tank capacity: 3.5 gallons
• Total run time: 5+/- minutes
• Typical installation time: 1 day
• Ready for External Fill Kit option
• Engineered for continuous inverted flight
• Strong monolithic tank construction (no seams)
• See successfully earned FAA Field approvals
• Oil level quickly & easily determined (tank is transparent)
• Tank easily removed and re-connected (when space is needed)

Specifications

• DIMENSIONS:
• Pump height: 4"
• Horizontal tank without pump: 11″ x 10.75″ x 10.5″ (LxWxH)
• Vertical Tank: 10.75" x 8.5" x 12.5" (LxWxH)
• WEIGHT:
• Smoke System (full): 50 lbs
• Smoke System (empty): 20.5 lbs

In The Box

• Oil filter
• Electronics
• Check valve
• Suction hose
• Piston injector (1)
• Pressure hose (10')
• Stainless steel hose (3')
• 12v pump (& 24v to 12v converter)
• Visual step by step instructions link
• Note: Fasteners for attaching brackets to aircraft not included
