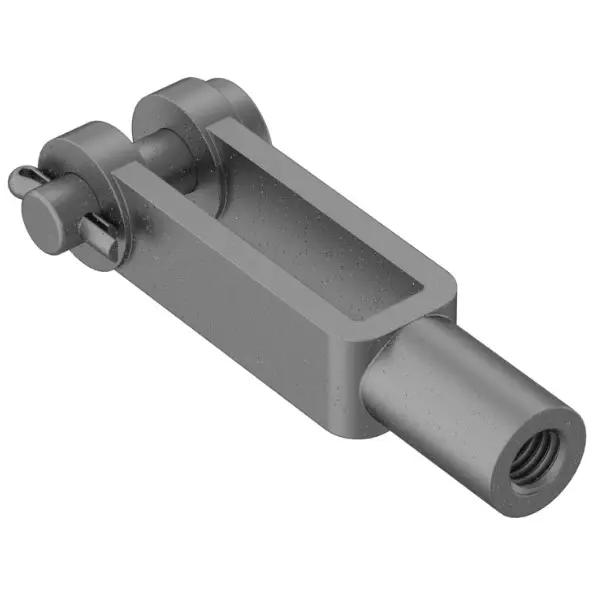

Clevis Rod End 10-32 Thread 1-9/16 Shank
Part Number(s): 05-01437, 6071K11
Unit of Measure Name:
Units
Internal Reference:
RX1-05-01437
Overview
| These steel rod ends are machined to SAE standards. Also called yoke-end linkages, they support pivoting movement along one axis when threaded onto shafts, rods, valve pistons, and other assemblies. |

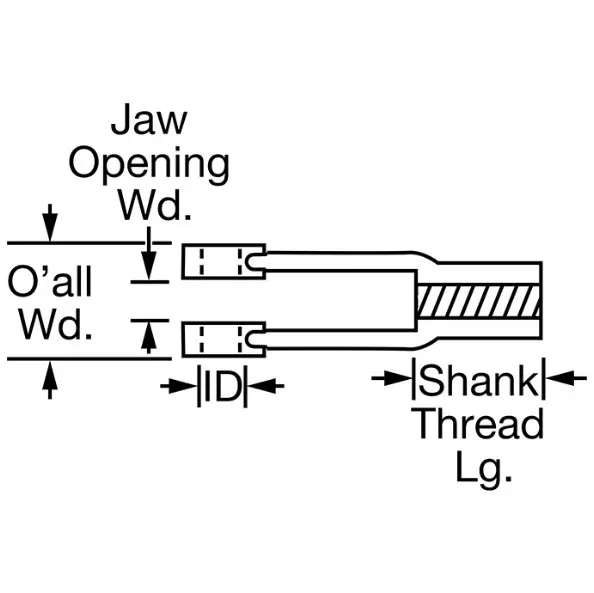

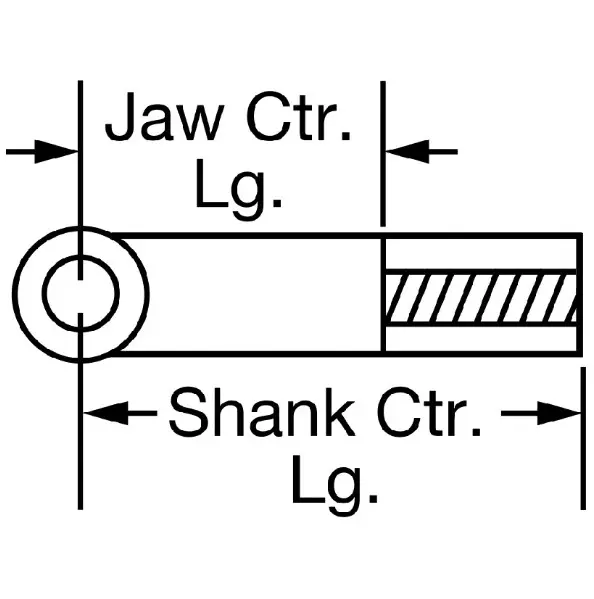

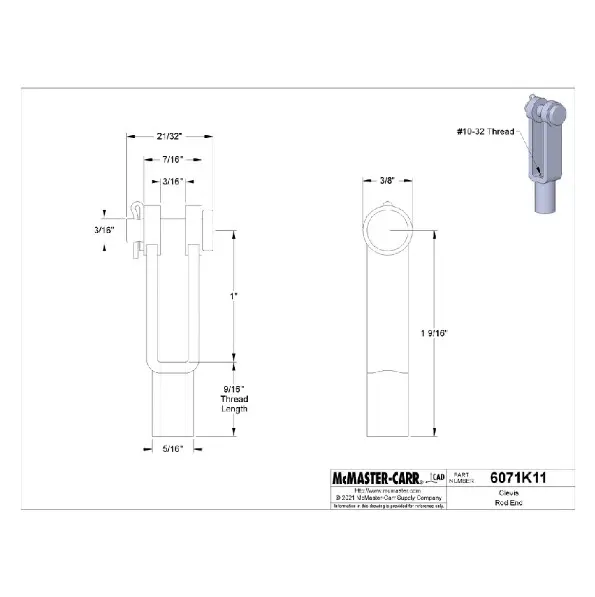

Specifications
| Shank Thread Size | Oct-32 |
|---|---|
| ID | 3/16" |
| Jaw Opening Width | 3/16" |
| Overall Width | 7/16" |
| Shank Center Length | 1 9/16" |
| Shank Thread Length | 9/16" |
| Jaw Center Length | 1" |
| Tensile Strength | 58,000 psi |
| Material | Carbon Steel |
| Rod End Type | Clevis |
| Includes | Clevis Pin, Cotter Pin |
| Shank Threading | Fully Threaded |
| Shank Gender | Female |
| Shank Thread Direction | Right Hand |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Peoples Republic of China |
| Schedule B | 848330.8055 |
| ECCN | EAR99 |
