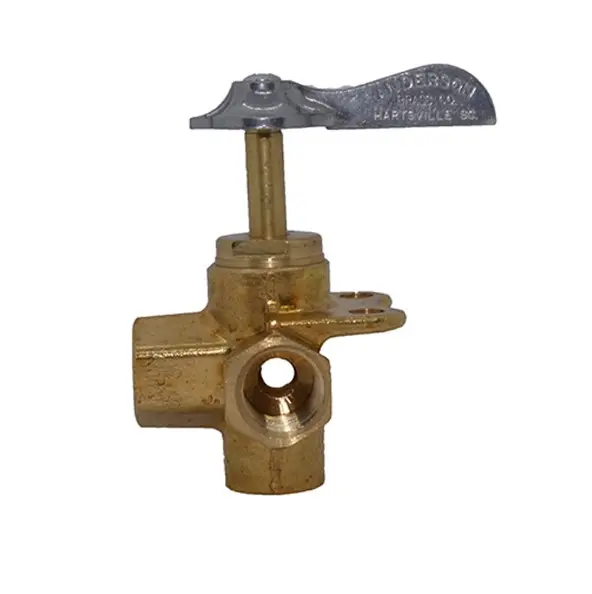

3/8FemX3/8Fem Fuelval/4-Port
Part Number(s): 05-01034, 200-CN
Unit of Measure Name:
Units
Internal Reference:
RX1-05-01034
| Part No. | Imperial Equiv. | Valve Type | Pipe Thread |
|---|---|---|---|
| 05-01034 | 114HD-06 | 4-Port** | 3/8" Female x 3/8" Female |
Overview
| A full-flow plug valve with solid bottom and integral mounting bracket. Brass body and plug. Floating stem with O-ring prevents leakage. Packed with synthetic grease which resists gasoline and solvents. Indicating click on 3-port and 4-port valve (CN models) tells when handle is in full open or closed position. Tested to 30 PSI. Not FAA approved. *For 2 tanks. Flow is from either side to branch. **For 3 tanks. Flow is from any side to bottom outlet. Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia. fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes. * For 2 tanks. Flow is from either side to branch. ** For 3 tanks. Flow is from any side to bottom outlet. Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes. |
